Cheap Take Ticket Dispenser For Queuing

Features:

1 Applications: Restaurant, Coffee Shop, Fast food Chain, Food Court, KTV, Pub, Service Centre, Clinic, Supermarket.

2 Material: aluminum profiles

3 Advantage: can avoid to stand in a long queue

4 Height: 25cm and 50cm

5 Packing Box: 37*23.5*6.5cm

6 Colors: Yellow, Red

A complete kit includes:

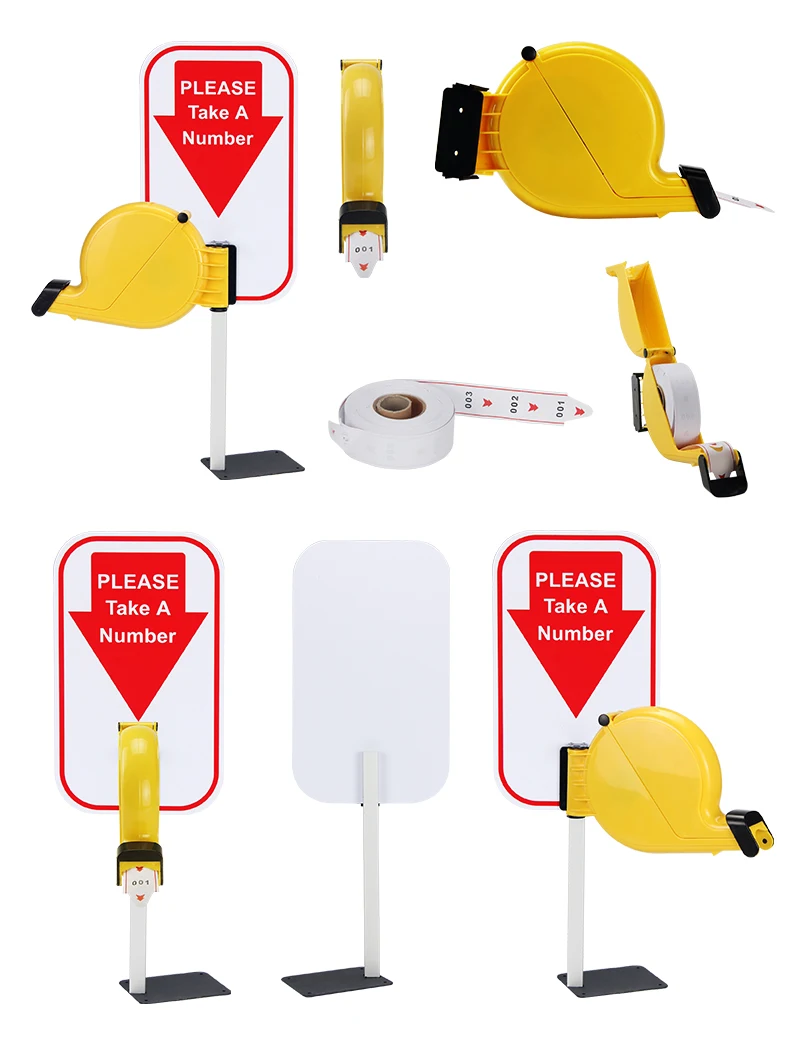

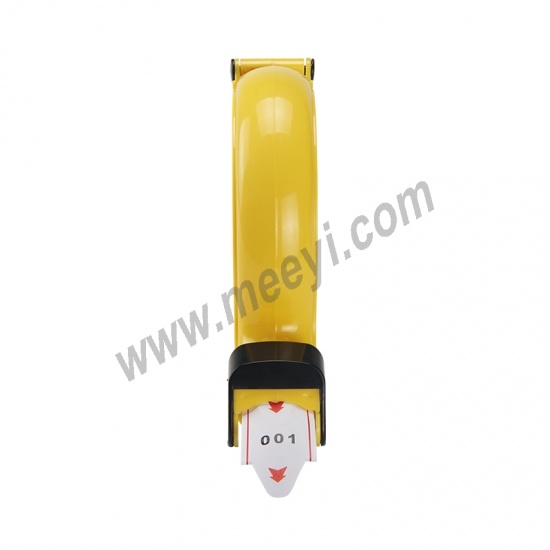

(1) Ticket dispenser

      To make the tickets for the customer

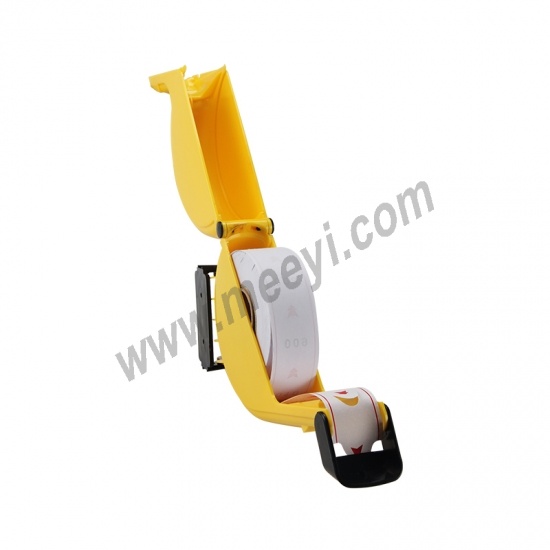

(2) Ticket Paper Roll

      Total 2000 PCS tickets.

      2-digit number is from 00-99, 20 groups

      3-digit number is from 000-999, 2 groups.

(3)  Screw

      To fix the ticket dispenser on counter.

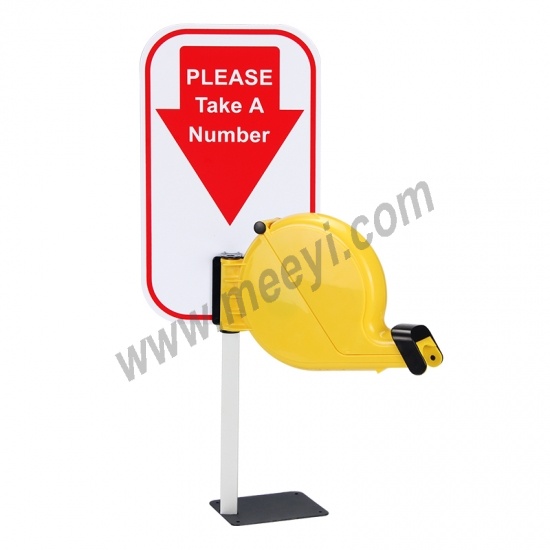

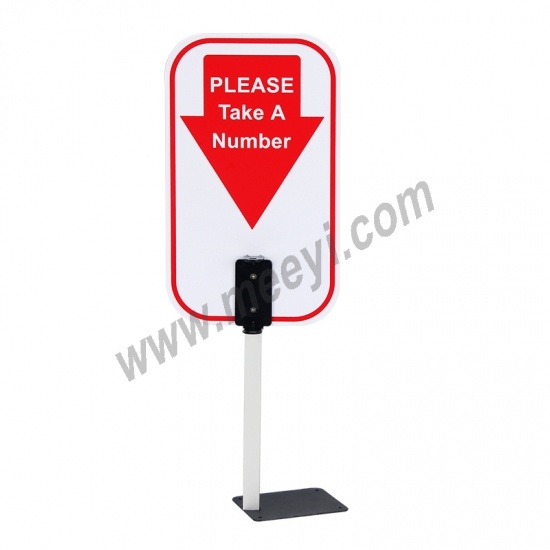

(4) Ticket dispenser stand

     Can fix the ticket dispenser

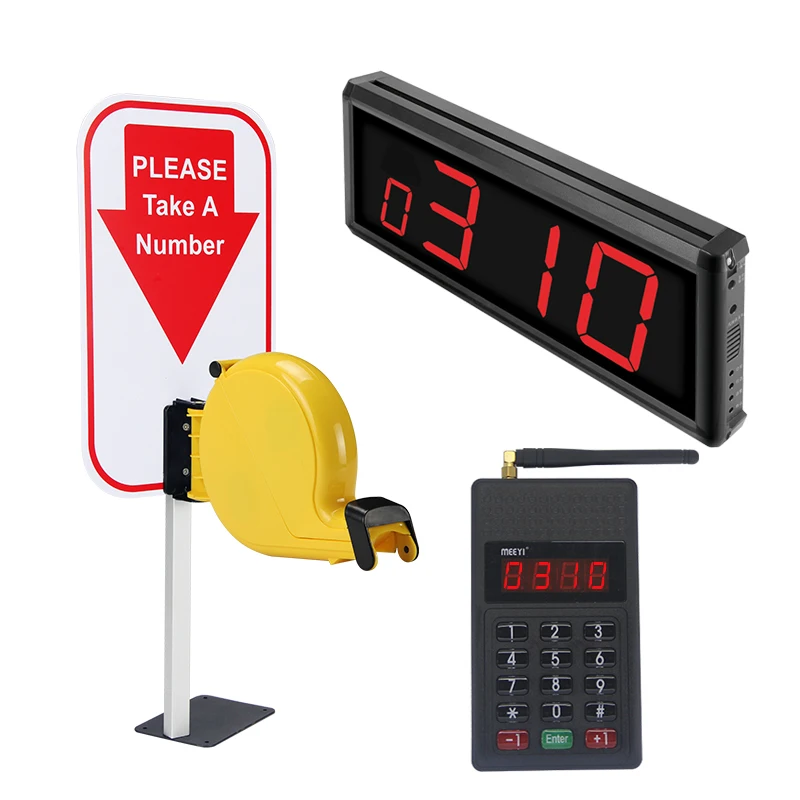

Compelete Queue Management System

How Queue Management System works?

1 Customer gives order to counter;

2 Counter take orders then give customer a Q number from ticket dispenser.

3 Customer waits somewhere for order.

4 When Order is ready. Kitchen can press someone's number from a Transmitter.

5 Then the number will be displayed on a Receiver screen with dingdong sound.

6 Customer or Waiter will see the display number and go collect food.

Y-P800 Queue Management System Keypad

Working voltage: DC12V
Working current: 130mA

Standby current:10mA
Working Frequency: 315MHz± 75K

Transmit Power: 35mW
Dimension:  155*96*16mm

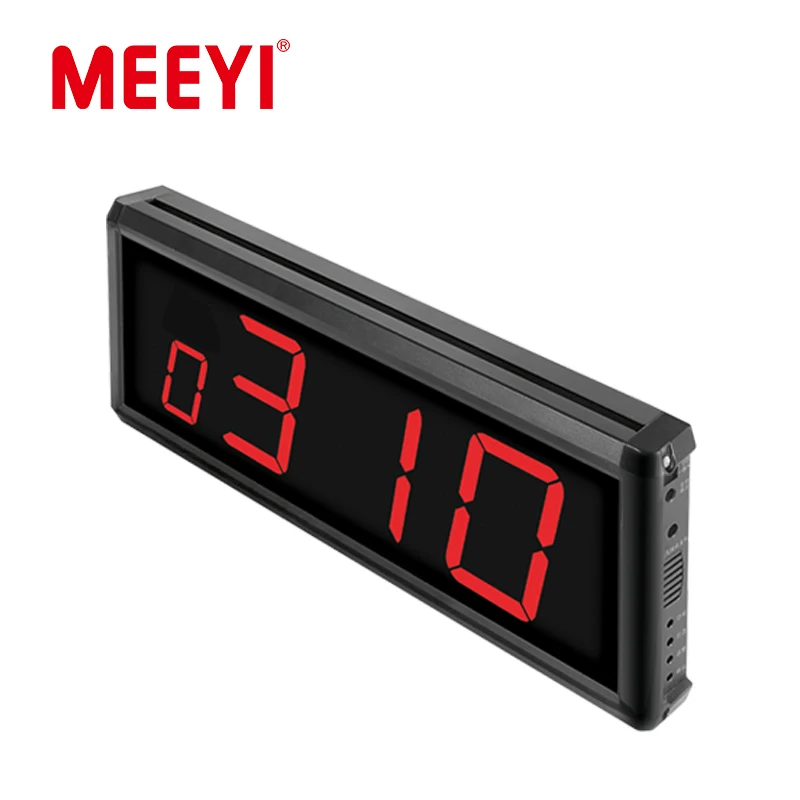

Y-303B Queue Management System Display

Working voltage: DC12V
Working current: 660mA

Standby current: 120-130mA
Working Frequency: 315MHz±75K

Audio output: 2W

Sensitivity: 110dB
Dimension: 420mm x 152mm x40mm
