Meeyi IP Based One Button Audio Elevator Intercom Terminal
Installed in atm subway train station airport bank, staff can call the monitor center for emergency.

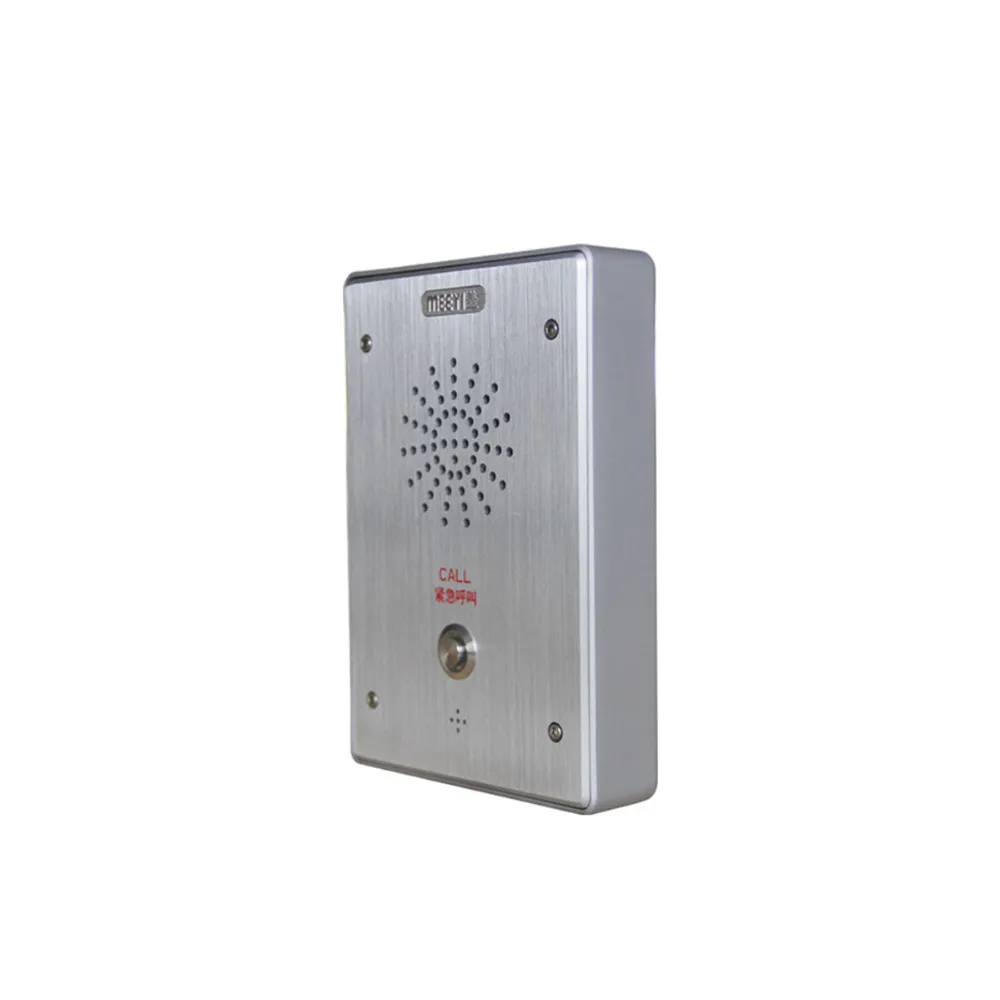

TB-8216 elevator intercom terminal
Features
• Stainless steel faceplate, surface mount or flush mounting
• Single call button, call goal be set in server, realize full-duplex talkback.
• Built-in speaker and microphonem, hands-free call and broadcasting receiving.
• Digital recording, upload to server automatically

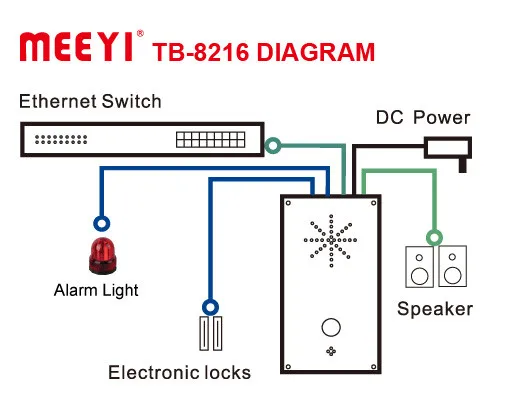

• With audio output interface, can connect to external speaker
• Short-circuit output for connect electronic lock or alarm light, etc.
• Remote software update, configuration monitoring
• Works everywhere as long as Ethernet available.
Specifications
POWER SOURCE |
DC12V |
POWER CONSUMPTION |
≤5W |
NETWORK PROTOCOL |
TCP UDP RTP |
NETWORK CHIP RATE |
10/100Mbps |
AUDIO SAMPLING |
22.050kHz~44.1kHz, 16bit |
TRANSMIT RATE |
16K~192K bps |
AUDIO CODE |
SILK, PCM |
INTERFACE |
1 audio out, 4 short-in, 2 short-out, 1 RJ45 in |
PRODUCT SIZE |
111x162x36mm |
EMBEDDED SIZE |
107x158x31mm |

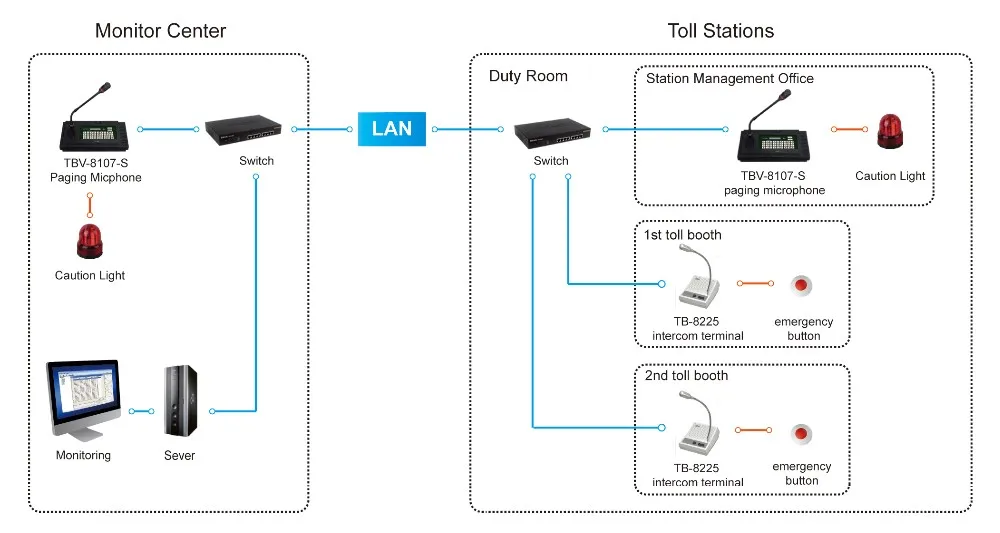

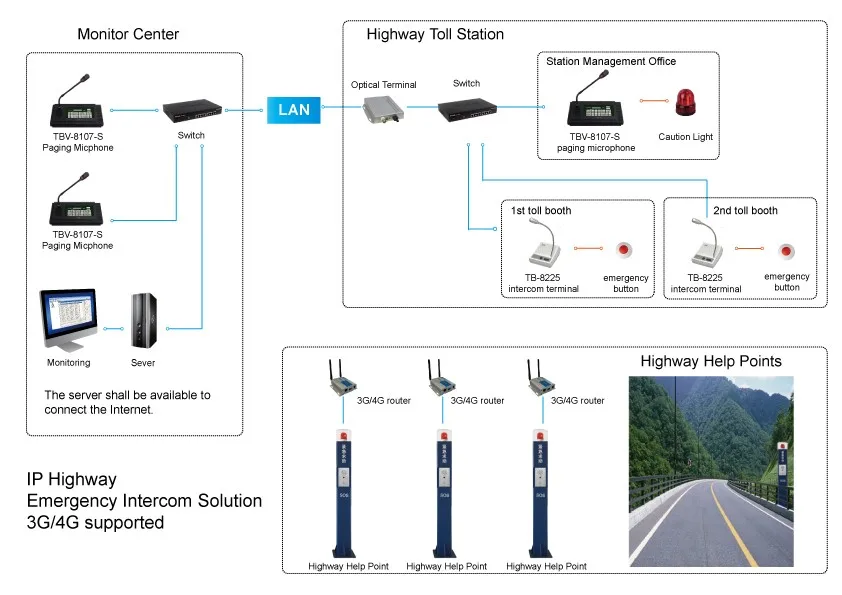

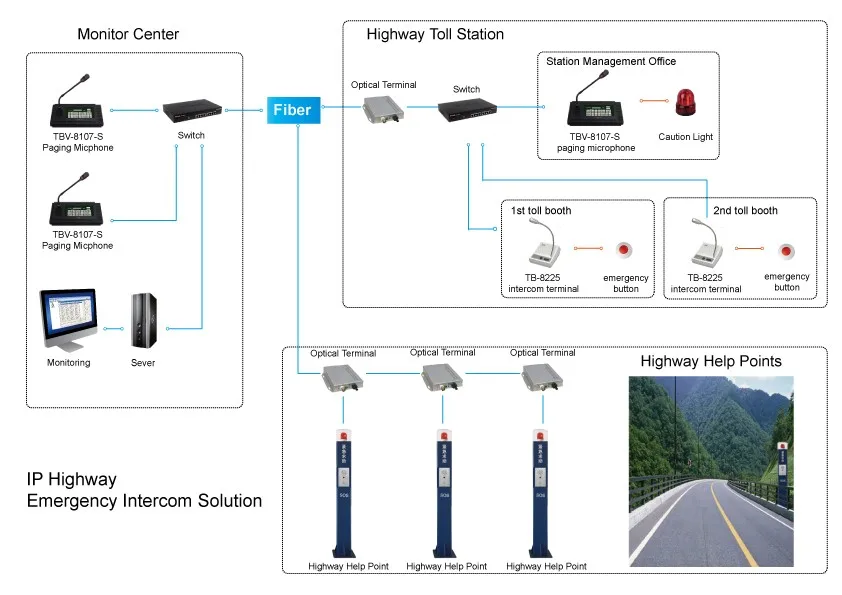

System diagram
System Construction
1. Management software: As
the server of the system, in charge of the setting of all the stations.
All the stations in the system are running based on the server
management software. The software shall keep opening to ensure the
normal running of all the IP stations. If the software shut down, all
terminals will disconnect from the network.

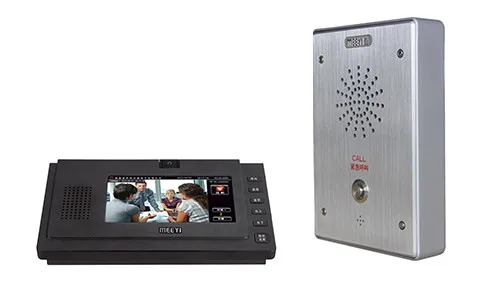

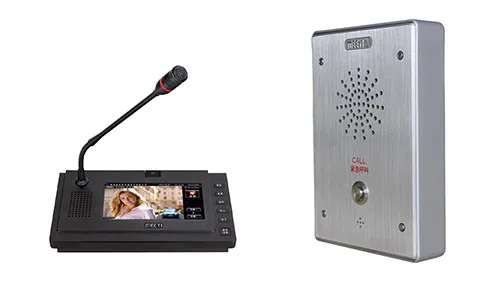

2. Paging microphone: Deploy
in the control center, supervise and manage all the intercom terminals.
Functions of intercom, broadcast propaganda, monitor and surveil are
available. Can intercom with the server management software.
3. Intercom terminal: Install
one by where need help or assistance. One push for hand-free
conversation with the main control center. The calling target can be the
paging microphone or the server software. (Predesigned by the server
software). The software and paging microphone can call, monitor and
surveil the intercom terminal.
