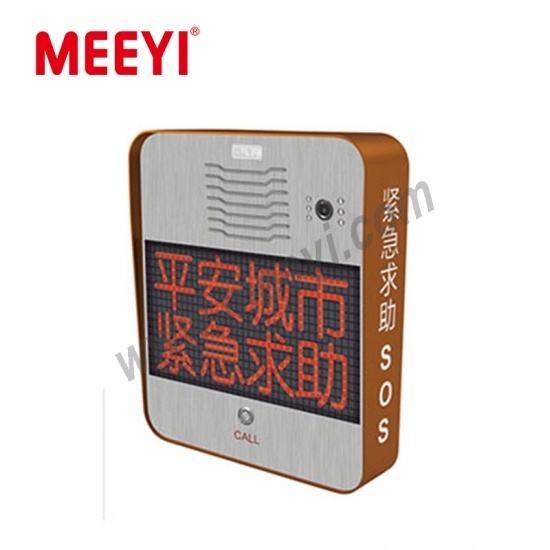

1. Full metal shell, strong and durable, can
be fixed on vertical bar.
2. Single button, call goal be set in server,
realize full-duplex talkback.
3. With built-in camera, present live scene
to the control center.
4. Built-in speaker and microphone,
hands-free call and broadcast receiving.
5. Digital recording, upload to server
automatically
6. With LED display, show 8 characters each
line.
7. With audio output port, can connect to
active speaker.
8. Short-circuit output for connect
electronic lock or alarm light, etc.
9. Remote software update, configuration and
monitoring
10. Works everywhere
as long as Ethernet available.

|
Model |
TBV-8206 |
|
Power Source |
DC12V |
|
Power Consumption |
≤5W |
|
Network Protocol |
TCP/RIP/UDP |
|
Network Chip Rate |
10/100Mbps |
|
Audio Sampling |
22.050kHz-44.1kHz, 16bit |
|
Transmit Rate |
8k~128k bps |
|
Camera |
CMOS color camera(optional) |
|
Interface |
Audio output, 4 short-circuit input, 2 short-circuit output, SD card holder, RJ45 |
|
Dimensions |
385x480x110mm |
Working Voltage |
DC 12V |
Max Working Current |
300mA |
Standby Current |
30mA |
Frequency |
433MHz |
Transmitting Power |
110mW |
