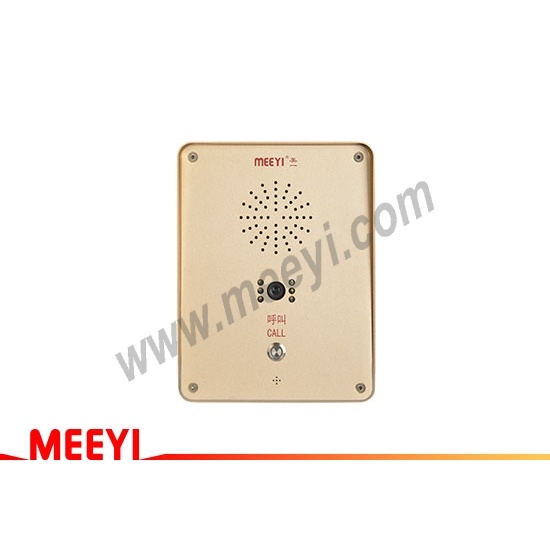

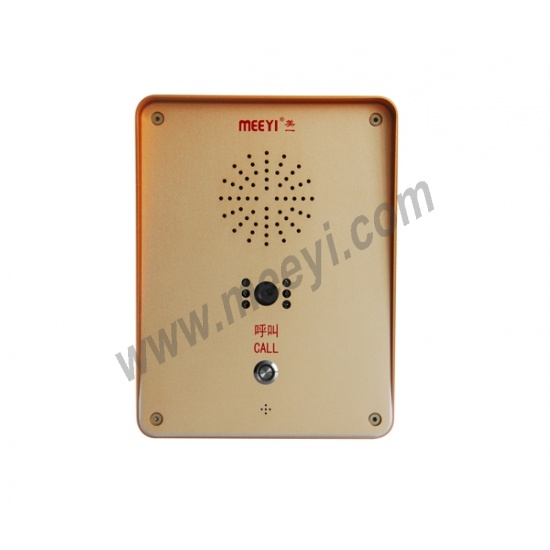

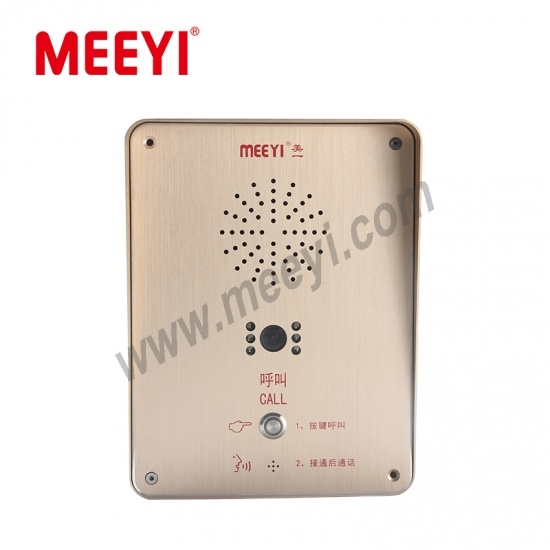

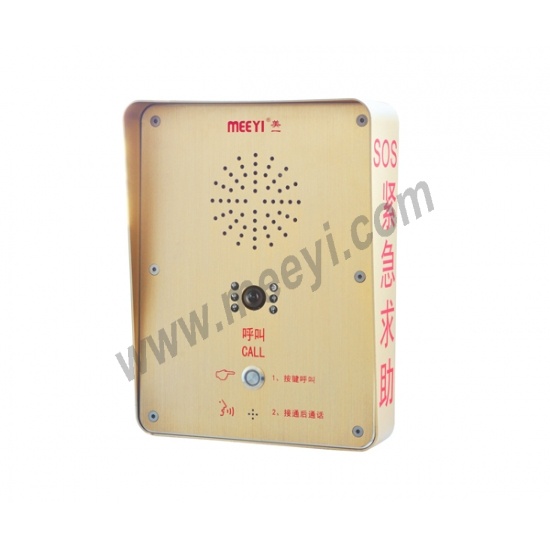

1. Stainless steel faceplate, surface mount or
flush mount
2. Single button, call goal be set in server,
realize full-duplex talkback.
3. With built-in camera, present live scene to
the control center.
4. Built-in speaker and microphone, hands-free
call and broadcast receiving.
5. Digital recording, upload to server automatically
6. With audio output port, can connect to active
speaker.
7. Short-circuit output for connect electronic
lock or alarm light, etc.
8. Remote software update, configuration and
monitoring
9. Works everywhere as long as Ethernet is
available.

|
Model |
TBV-8201A |
|
Power Source |
DC12V |
|
Power Consumption |
≤5W |
|
Network Protocol |
TCP/RIP/UDP |
|
Network Chip Rate |
10/100Mbps |
|
Audio Sampling |
22.05kHz~44.1kHz, 16bit |
|
Transmit Rate |
16kbps-192kbps |
|
Camera |
COMS color camera |
|
Interface |
Audio output, 4 short-circuit input, 2 short-circuit output, SD card holder, RJ45 |
|
Dimensions |
190x250x40-70mm |
