1. TB-8000 one-piece intercom system, for emergency calling in the lift, the basic components are:
1) Management software (server)

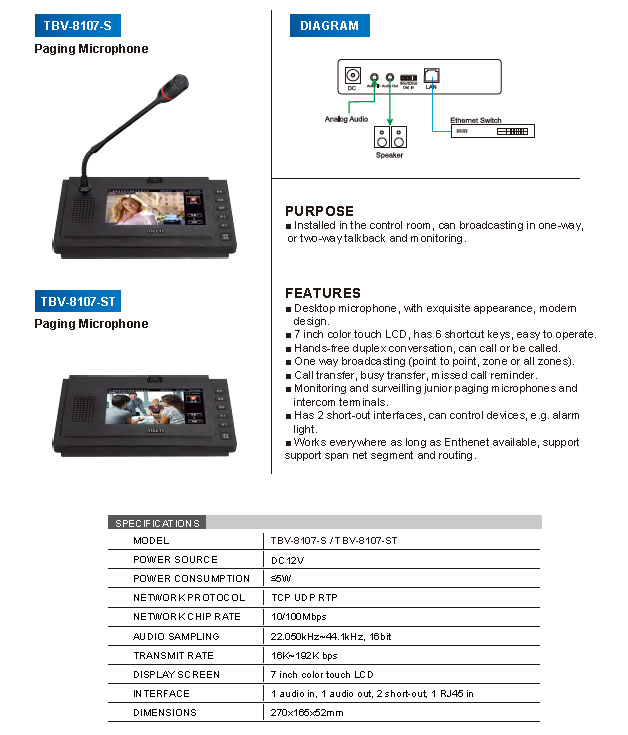

2) Paging microphone (TBV-8107-S)
3) Intercom terminal (audio & video models for your requirement)

2. TB-3000 split-type intercom system, for both maintenance intercom and emergency calling in the lift, the basic components are:
1) Management software (server)
2) Paging microphone(TBV-8107-S)
3) Panel network controller(TB-3800N)
4) Intercom panels(5 models for your choice)

Enabled by TCP/IP technology, Huanyutong IP Network Intercom /broadcasting System is a integrated system of two-way audio amplification and one-way (or two-way) video transmission. This system steams the audio and video signals over LAN or WAN by the form of IP packet., completely solving the problems existing in traditional intercom or broadcasting system: poor sound quality, complicate maintaining management, limitation of transmission distance, poor interaction, being heard without image, etc. This system is easy to install and operate, can work everywhere as long as Ethernet is available.

Product Features:

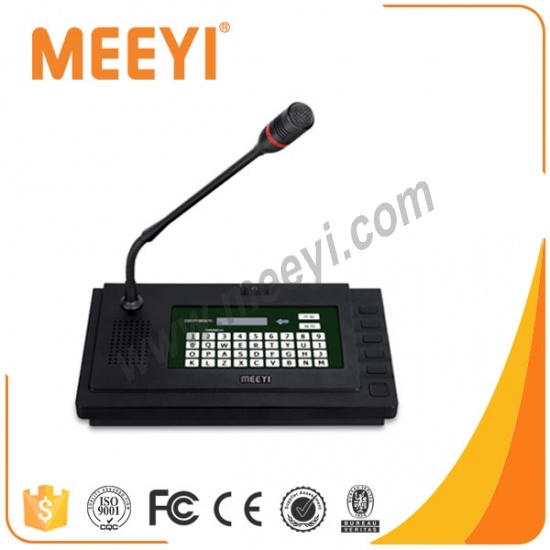

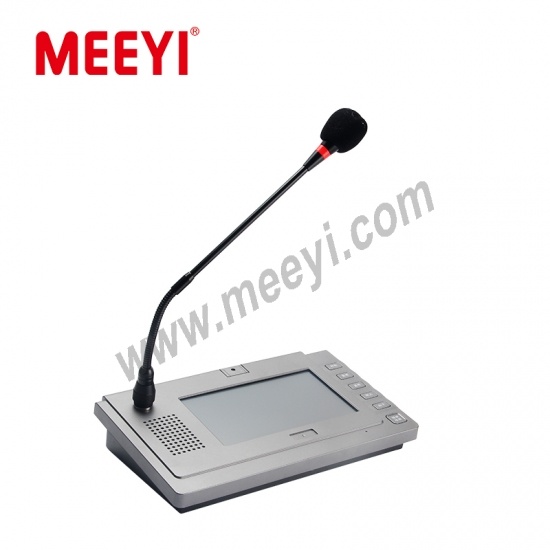

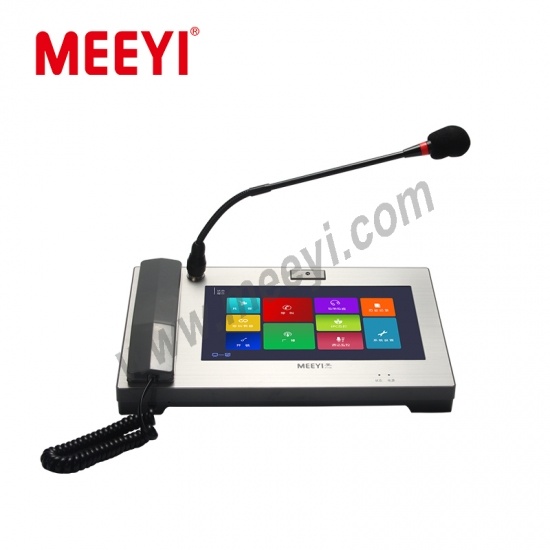

IP Paging Microphone

• Meeyi has independent intellectual property rights for the echo cancellation technology, completely solve the echo and howl in talkback.
• 7 inches LED touch screen with true color display, easy to be operated
• Embedded structure, avoid problems of “system breakdown” “virus attack”, etc..
• Two-way video intercom with cage extension or management hosting.
• Has functions of mandatory, broadcasting, call transfer, monitoring, auto circle monitoring, recoding inquiring, etc..
• Applied for 5-way conversation, which consist of community security room (or monitor management center), car of the elevator, engine room of the elevator, top of the elevator and bottom of the elevator.
• Easy to be installed, uses RJ45 standard network cable, be plugged in the interface of network switch.

Technical Parameters:

Combination:

Sub-stations TBV-3201A installed in the car

Sub-station TB-3201A installed in the car/ the top of the car/ the bottom of the car

Sub-stations TB-3201C installed in the car

Main controller TBV-3300

Diagram:
