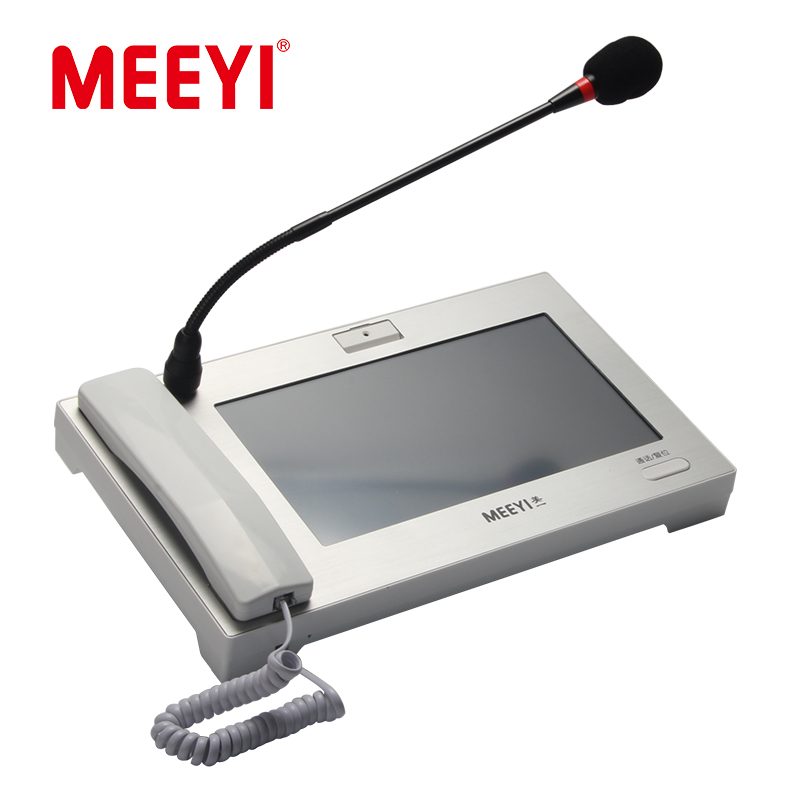

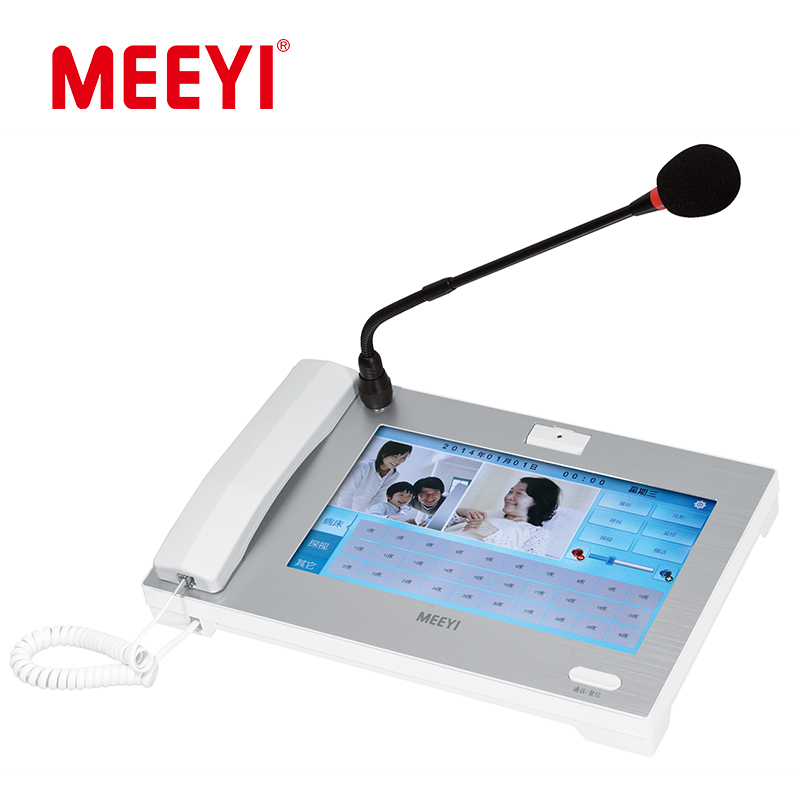

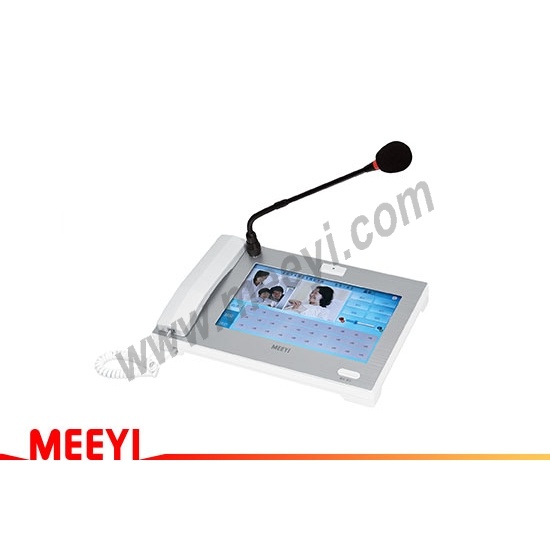

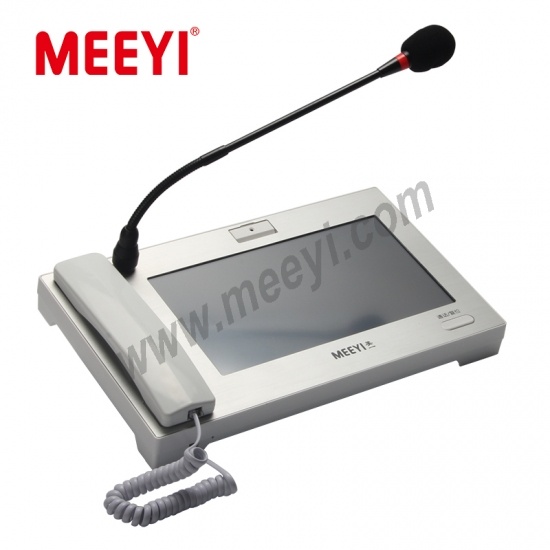

ICU Digital Medical Intercom Hospital Nurse Intercon System
1. With built-in speaker and microphone, handle or hands free call, it can realize full-duplex real-time HD video call.
2. Conveniently push to talk, intuitive display ward substations and visiting substations in list with different colors of being online, offline, busy, visiting, etc.
3. ICU substations and ward substations are able to call the ICU master station in nurse station, vice versa.
4. Nursing location function: it can transfer the calling information into the substation, so the nurse can answer it directly.
Call transfer: transfer ICU visiting substation call for relative ICU ward substation.
5. Telephonometry: it can display time when the ICU visiting substation is talking to the ICU ward substation for nurse.
6. Interposing: remind the patients of treatment time
7. Interrupt conversation: abort conversation when needed.
8. Recording video & audio, and displaying on LCD TV via HDMI after recording treatment.
9. Optional conversation duration (10 mins, 30mins, 1hour for option)
|
Model
|
E5IH-G30-10Z
|
|
Power Source
|
DC12V
|
|
Power Consumption
|
≤5W
|
|
Network Protocol
|
TCP/UDP/RTP
|
|
Network Chip Rate
|
10/100Mbps
|
|
Audio Sampling
|
22.050kHz-44.1Khz, 16bit
|
|
Transmit Rate
|
16k~192k bps
|
|
Display
|
10” Color LCD Touch Screen
|
|
Interface
|
Audio output, 2 short-circuit input, 2 short-circuit output, SD card holder, RJ45
|
|
Dimensions
|
328*203*34 mm
|
