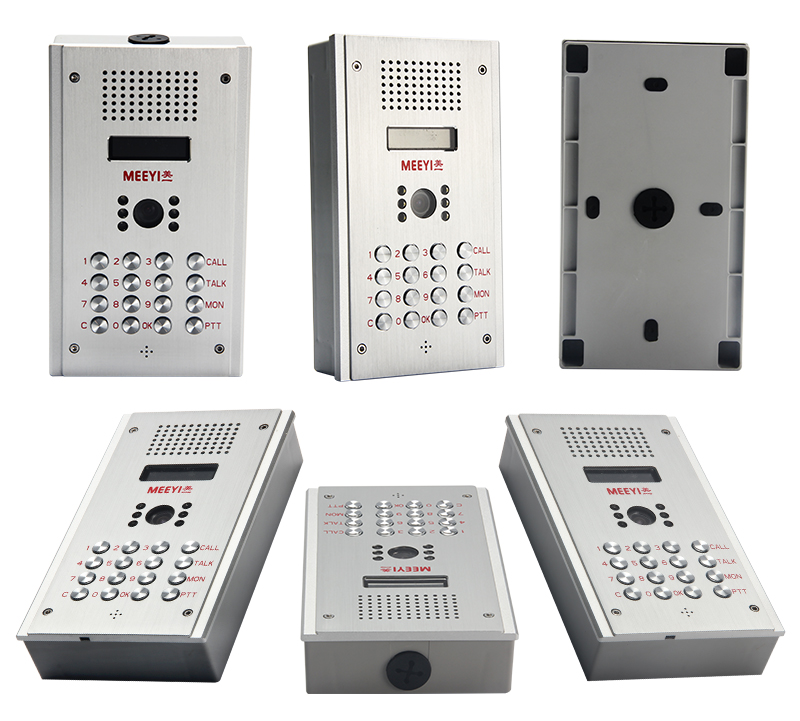

IP Based Video Industrial Intercom with Camera
• Full metal
shell, strong and durable, can be fixed on vertical bar.
• Single
button, call goal be set in server, realize full-duplex talkback.
• With
built-in camera, present live scene to the control center.
• Built-in
speaker and microphone, hands-free call and broadcast receiving.
• Digital
recording, upload to server automatically
• With audio
output port, can connect to active speaker.
• Short-circuit output for connect electronic lock or alarm light, etc.
• Remote
software update, configuration and monitoring
• Works
everywhere as long as Ethernet available.
Voltage |
DC12V |
Power Source |
≤5W |
Network Protocol |
TCP/UDP/RTP |
Network Chip Rate |
10/100Mbps |
Audio Sampling |
22.020kHz-44.1Khz, 16bit |
Transmit Rate |
16k ~ 192k bps |
Audio Coding |
SILK, PCM |
Camera |
CMOS Camera |
Interface |
Audio output, 2 short-circuit input, 2 short-circuit output, SD card holder, Rj45 |
