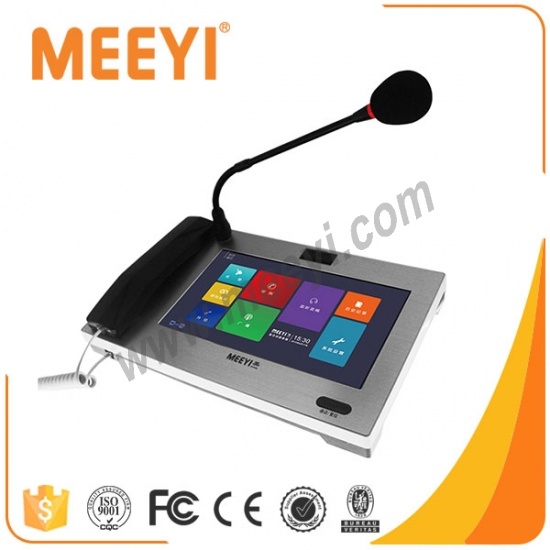

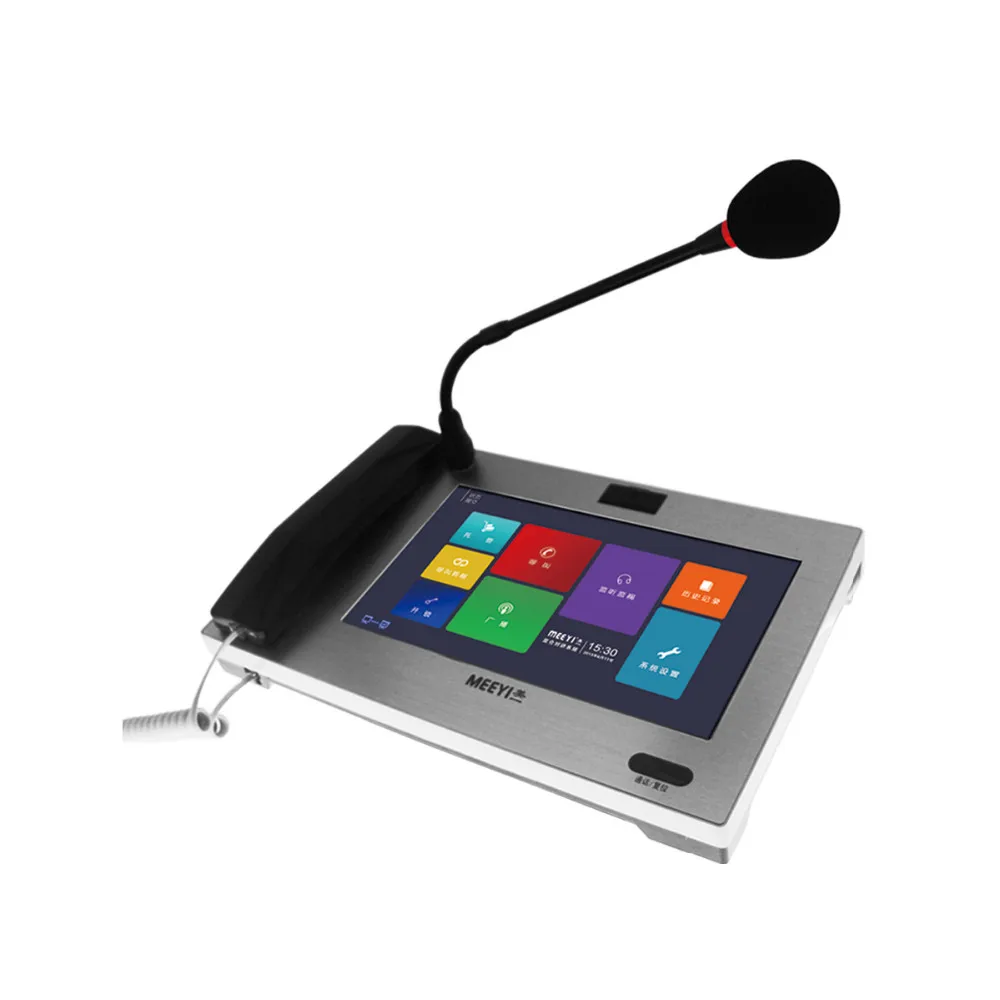

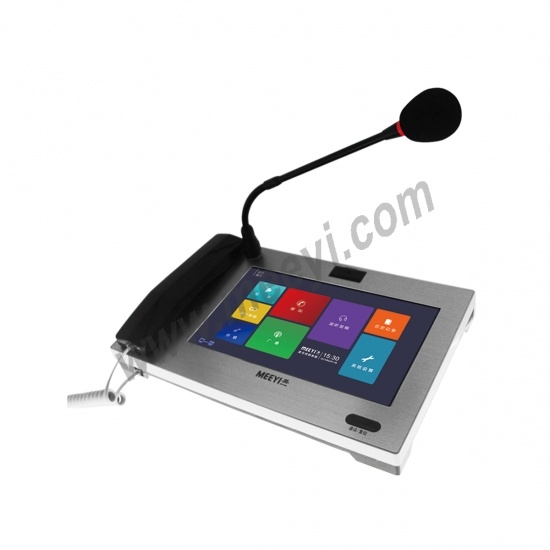

Meeyi 10 Inch LCD Color Touch Screen IP Intercom Microphone

 TBV-3T8110 touch screen ip intercom microphone

Features:

6 shortcuts, 10 inch LCD color touch screen  ip intercom microphone

Use industry-grade high speed chip

Call transfer; busy transfer; missed call reminder

Can broadcast to both equative paging mivrophone and all inferior terminals.
Built-in speaker allows bidirectional intercom, presenting the images from terminals.
Monitoring and surveilling all the terminals.
With 2 short-circuit output interfaces, can control some peripheral devices, e.g. alarm light.
Works everywhere as long as Ethernet available,can cross network segment and routing.

Specifications:

Diagram:

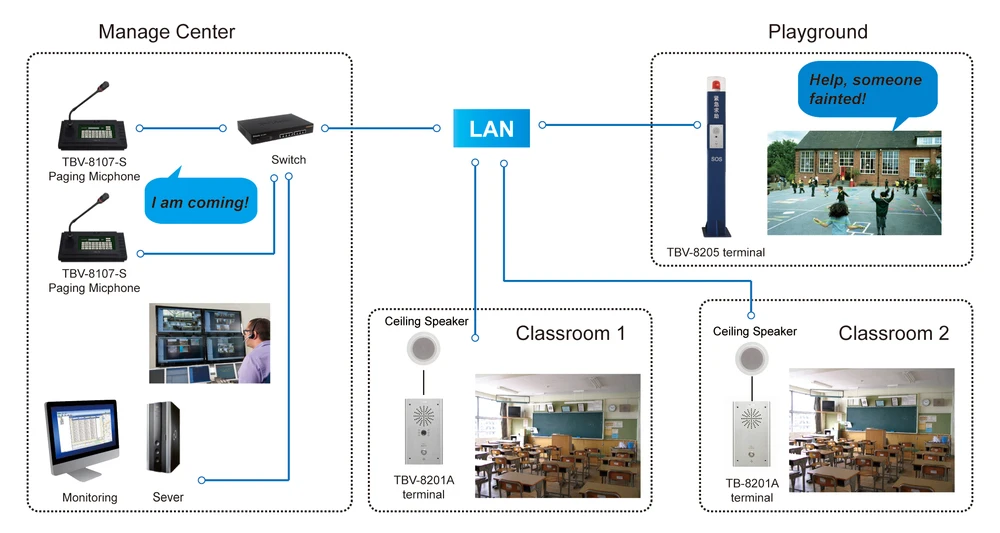

System Construction:

1. Management software: As the server of the system, in charge of the setting of all the stations. All the stations in the system are running based on the server management software. The software shall keep opening to ensure the normal running of all the IP stations. If the software shut down, all terminals will disconnect from the network.
2. Paging microphone: Deploy in the control center, supervise and manage all the intercom terminals. Functions of intercom, broadcast propaganda, monitor and surveil are available. Can intercom with the server management software.
3. Intercom terminal: Install one by where need help or assistance. One push for hand-free conversation with the main control center. The calling target can be the paging microphone or the server software. (Predesigned by the server software). The software and paging microphone can call, monitor and surveil the intercom terminal.
