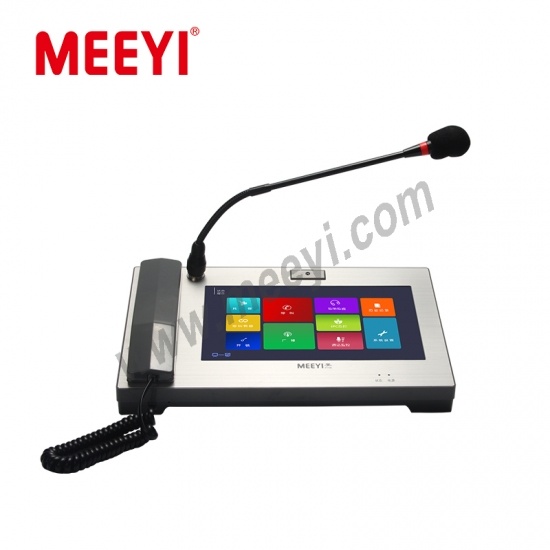

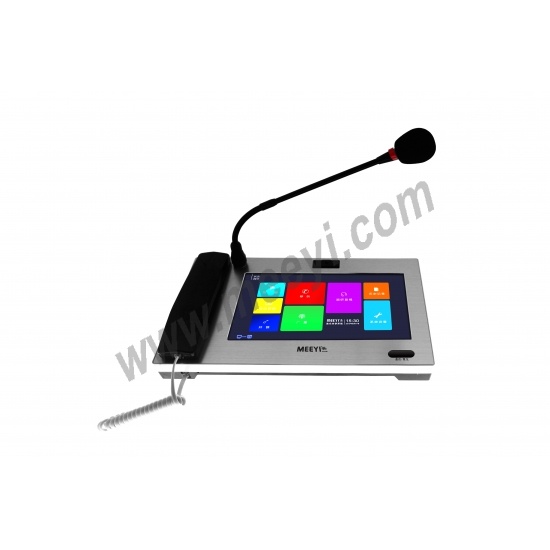

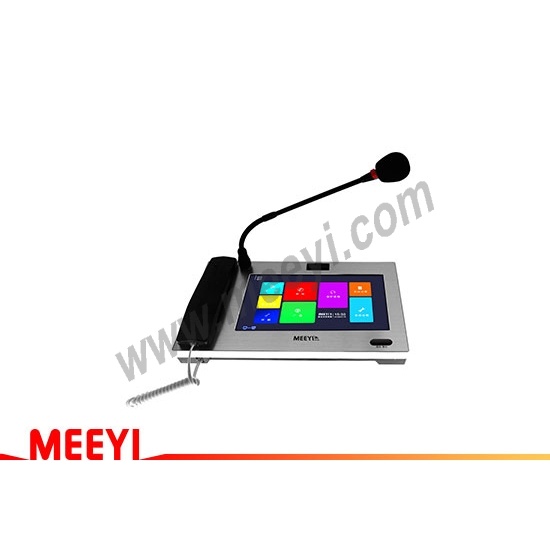

1. 10 inch color touch screen, 6 shortcuts.
2. Use industry-grade high speed chip.
3. Set up and manage all the terminals in the
systems.
4. Can broadcast to both equative paging
microphone and all inferior terminals.
5. Built-in speaker allows bidirectional
intercom, presenting the images from terminals.
6. Monitoring and surveilling all the
terminals.
7. With 2 short-circuit output interfaces,
can control some peripheral devices, e.g. alarm light.
8. Works everywhere as long as Ethernet is
available, can cross network segment and routing.

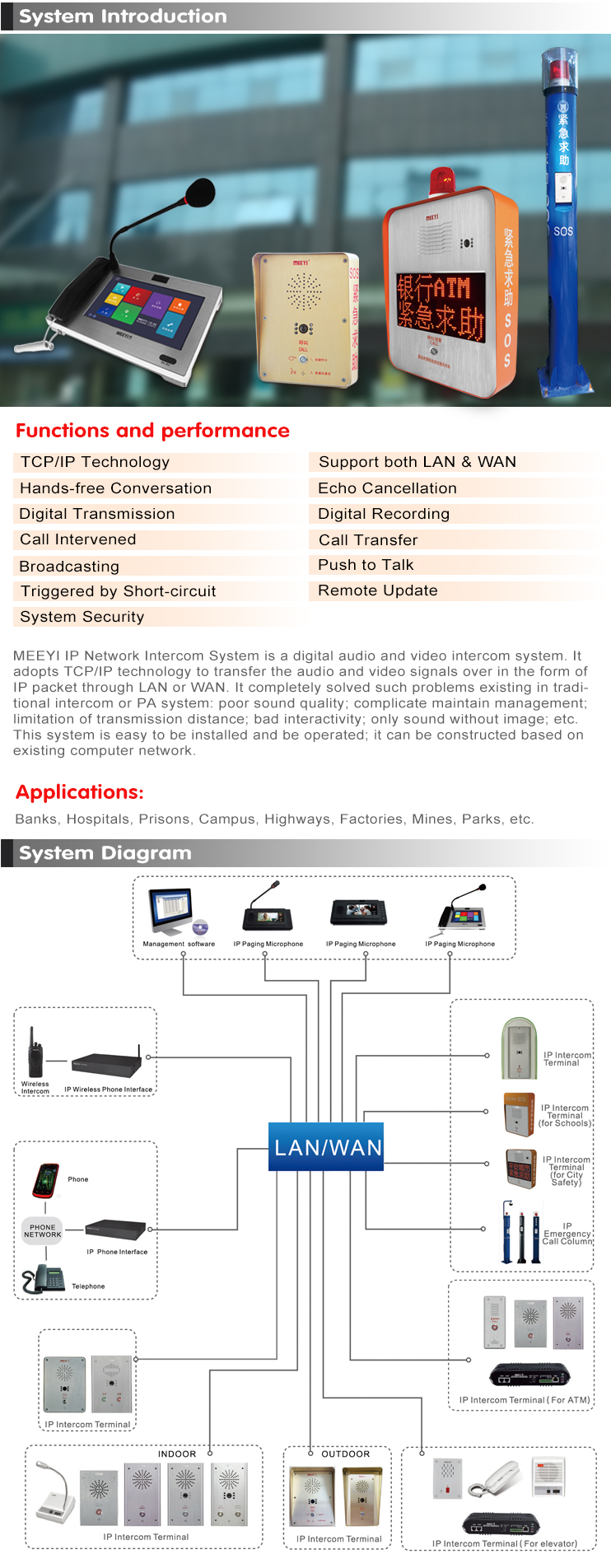

9. Installed in the control center, used for broadcasting, duplex intercom, monitoring and surveilling.
Power Source |
DC12V |
Power Consumption |
less than 5W |
Network Protocol |
TCP/IP |
Network Chip Rate |
10/100Mbps |
Audio Sampling |
22.05kHz~44.1kHz, 16bit |
Transmit Rate |
16kbps-192kbps |
Display Screen |
7 inch LCD color touch screen |
Interface |
Audio input/output, 2 short-circuit, SD card holder, RJ45, USB |
Dimensions |
360*210*35mm |
Power Source |
DC12V |
