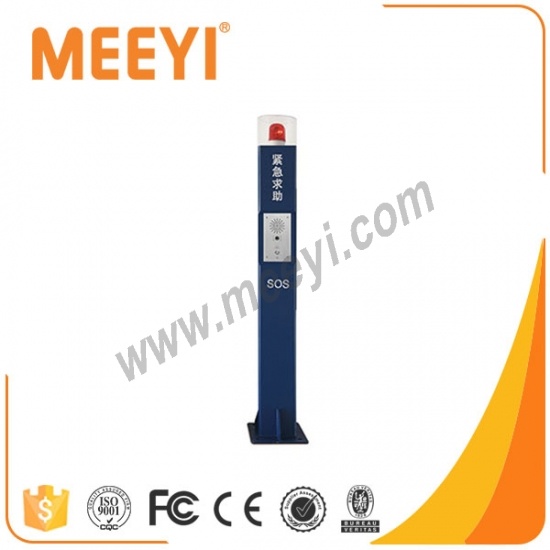

Meeyi SOS Pillar Emergency Calling Device IP Intercom Security Alarm Column

One touch call to management center or police station asking for help in emergency.

TBV-8205 security alarm column

Successful Case

Purpose

Suitable for indoor and outdoor environment, durable and waterproof.

Features

1 Full metal shell and explosion-resistible, easy to be recognised

2 Single button or double button, with one-touch call function (pre-set the target in the server), realize full-duplex talkback.

3 With built-in camera, present live scene to the control center.

4 Built-in speaker and microphone, for hands-free call and broadcast receiving.

5 Digital audio recording, save auido file in the paging microphone then upload to the server when system is free.

6 With audio output port, can connect to active speaker.

7 Short-circuit output to connect electronic lock or alarm light; short-circuit input to connect the alarm button.

8 Optional 20W amplifier module for connecting external column loudspeaker or horn speaker

9 Remote software update, configuration and monitoring

10 Works everywhere as long as Ethernet available.

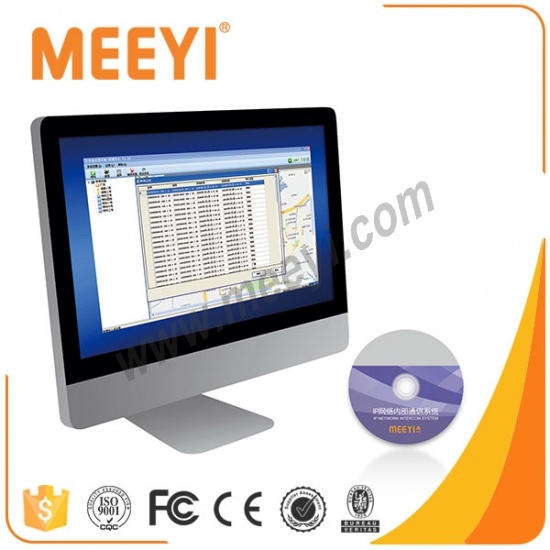

Software Features

Compatible with Windows 2000, Windows XP operation system.

Set up the parameters of the intercom substations.

Show all the call records, store the recorded files of each conversation.

Can import the project map to the software, show the terminals on approprite location by icons.

Can play backgroup music to any intercom terminals under “Broadcast” mode.

Remote setup and upgrate of the terminals

Specifications

System diagram

1 Each terminal can specific predefined call target.

2 All the IP paging microphones and terminals are in flat structure, without difference of hosting and extension. Can be arbitrary used.

3 Used in LAN/WLAN which has crossed the network segment, the terminals support automatic getting of IP address and have the function of automatic flow adjustment.

System Construction

1. Management software: As the server of the system, in charge of the setting of all the stations. All the stations in the system are running based on the server management software. The software shall keep opening to ensure the normal running of all the IP stations. If the software shut down, all terminals will disconnect from the network.
2. Paging microphone: Deploy in the control center, supervise and manage all the intercom terminals. Functions of intercom, broadcast propaganda, monitor and surveil are available. Can intercom with the server management software.

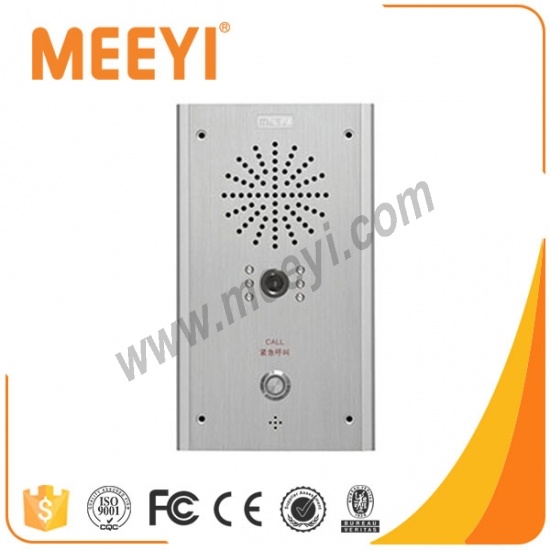

3. Intercom terminal: Install one by where need help or assistance. One push for hand-free conversation with the main control center. The calling target can be the paging microphone or the server software. (Predesigned by the server software). The software and paging microphone can call, monitor and surveil the intercom terminal.
