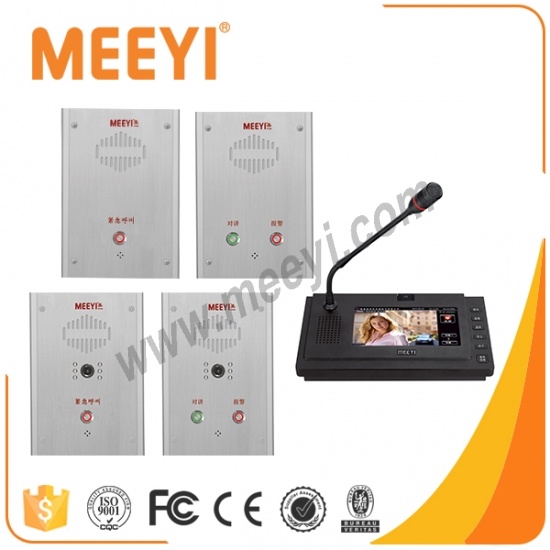

2 Elevator Call Intercom System Solutions

Enabled by TCP/IP technology, Huanyutong IP Network Intercom /broadcasting System is a integrated system of two-way audio amplification and one-way (or two-way) video transmission. This system steams the audio and video signals over LAN or WAN by the form of IP packet., completely solving the problems that exist traditional intercom or broadcasting system: poor sound quality, complicate maintaining management, limitation of transmission distance, poor interaction, being heard without image, etc. This system is easy to be installed and operated, can work everywhere as long as Ethernet is available.

We have 2 solutions for the elevator intercom:

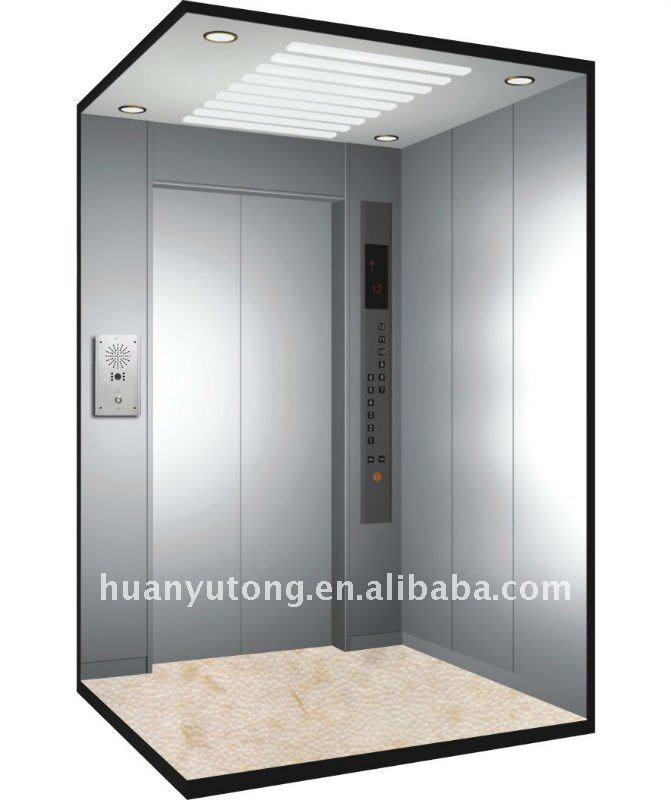

1. TB-8000 one-piece intercom system, for emergency calling in the lift, the basic components are:
1) Management software (server)
2) Paging microphone (TBV-8107-S)
3) Intercom terminal (audio & video models for your requirement)

2. TB-3000 split-type intercom system, for both maintenance intercom and emergency calling in the lift, the basic components are:
1) Management software (server)
2) Paging microphone(TBV-8107-S)
3) Panel network controller(TB-3800N)
4) Intercom panels(5 models for your choice)

1. TB-8000 one-piece intercom system

Intercom terminals:

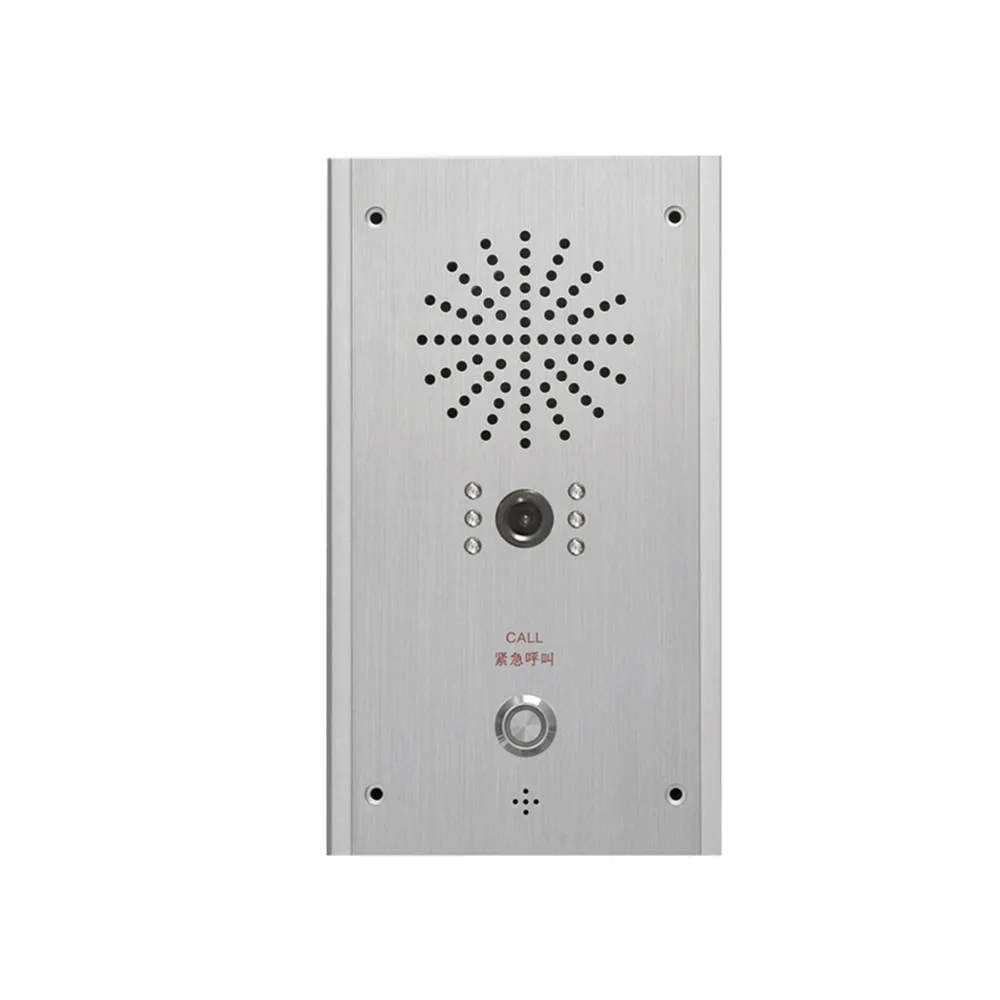

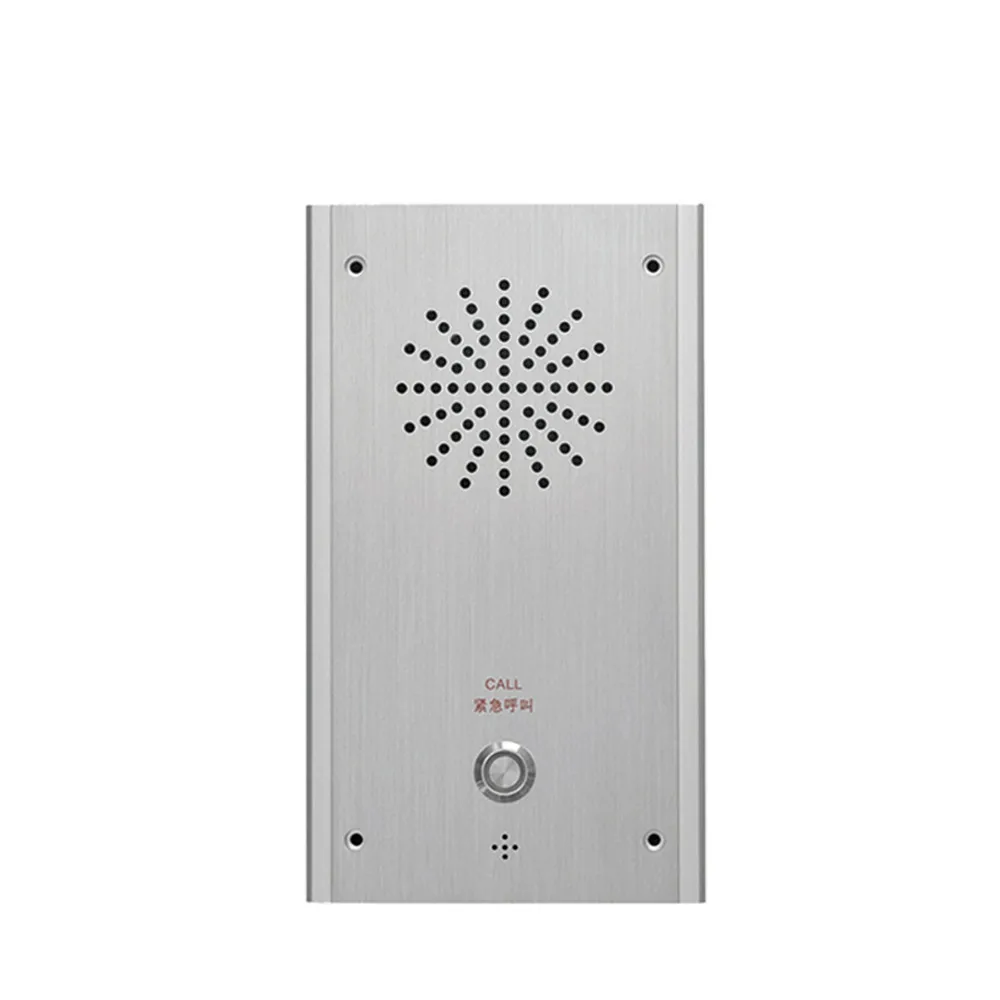

Featured models: TB-8201A(without camera)   / TBV-8201A(with camera)

Product Features:

• Stainless steel panel, durable, surface-mounted or flush-mounted
• 1-key button panel, realizing full-duplex intercom.
• Built-in Speaker available for hands-free talkback and receiving broadcasting.
• Built-in microphone and camera, can present the audio and video at the same time, monitoring & surveilling the surrounding of the terminals.
• Digital audio and video recording, can save the audio and video files in SD card while talking and uploading to the server in spare time.
• Audio output interface, can work with active speaker..
• Short-circuit output and input interfaces, can receive and control some peripheral devices.
• Works everywhere as long as Ethernet is available.

Technical Parameters:

Diagram:

2. TB-3000 split-type intercom system

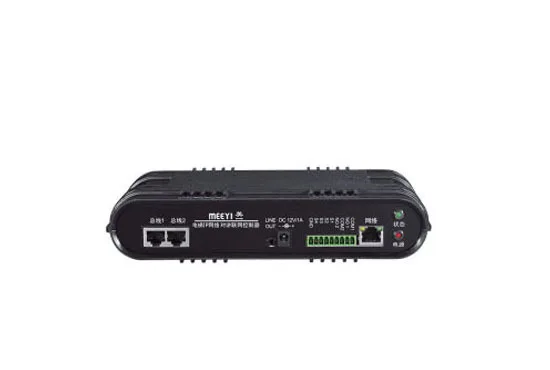

Panel network controller:

Product Features:

1. Network type panel controller
2. Can connect with external camera, simultaneous showing video to the
center during the talkback.

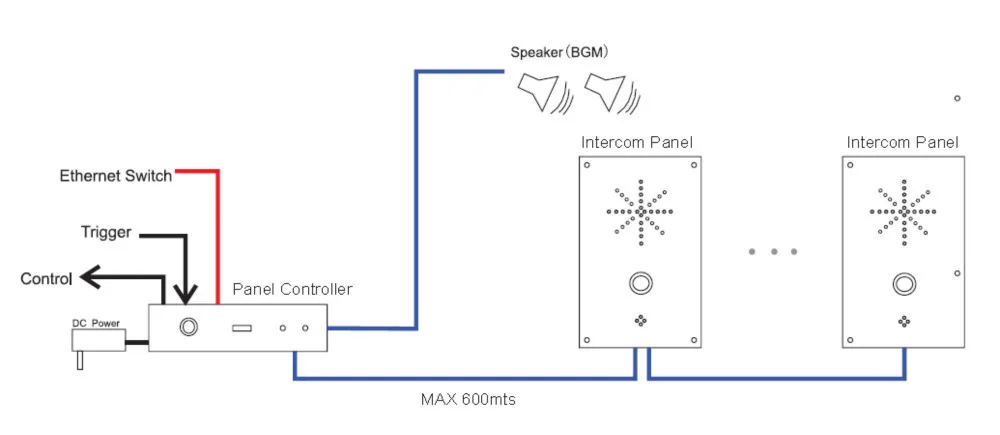

3. Work with TB-3000 series split-type panels, max 8 panels connected hand in hand, total distance 600ms.
4. Digital audio and video recording, upload to server automatically
5. Set up the parameters(name, priority, short-in & short out, volume, etc)
on the management software, the parameters of the intercom panels
are subjected to the panel controller.
5.Has short-circuit output and input interfaces
6. Works everywhere as long as Ethernet available.

PURPOSE
Designed for elevator maintainance intercom and elevator emergency help

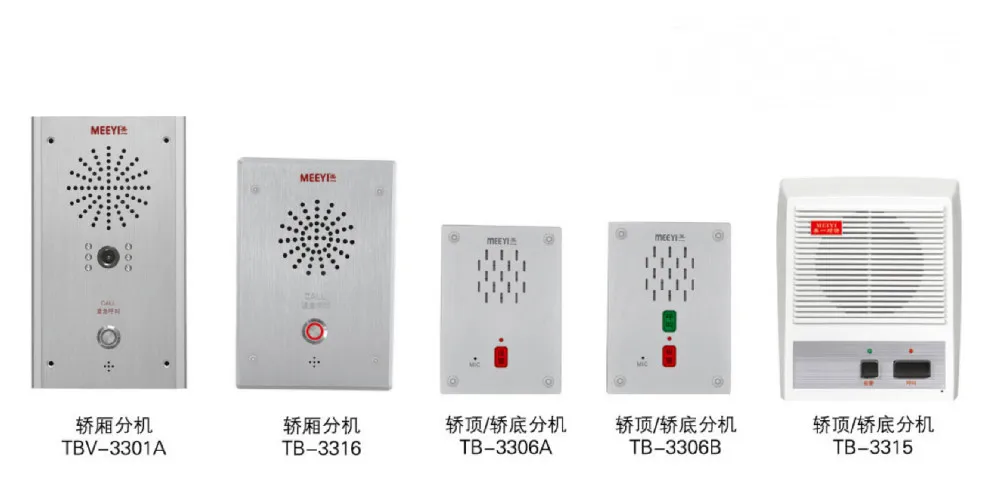

Intercom terminals:

PURPOSE
Designed for elevator intercom
FEATURES
1. Work with panel controller
2. With built-in mircophone and speaker, hands-free call and broadcast receiving.
3. One press to call monitoring center, simple and quick operation.
4. Press for 8 seconds to intiate multiparty calls with the other intercom panels.(maintainance purpose)

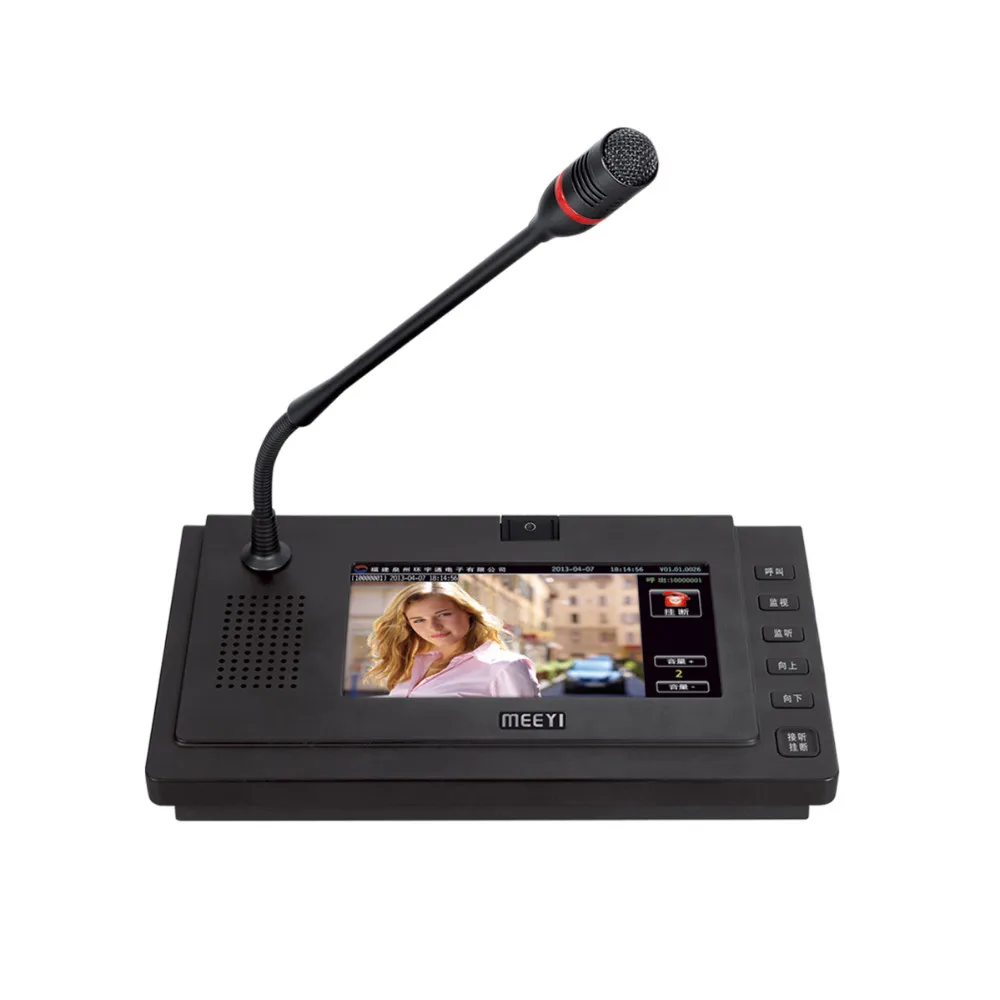

IP paging microphone:

Deploy in the control center, supervise and manage all the intercom terminals. Functions of intercom, broadcast propaganda, monitor and surveil are available. Can intercom with the server management software.

FEATURES
