Sos Call Center Telephone With Emergency Call System
Enabled by TCP/IP technology, Huanyutong IP Network Intercom /broadcasting System is a integrated system of two-way audio amplification and one-way (or two-way) video transmission. This system steams the audio and video signals over LAN or WAN by the form of IP packet., completely solving the problems existing in traditional intercom or broadcasting system: poor sound quality, complicate maintaining management, limitation of transmission distance, poor interaction, being heard without image, etc. This system is easy to be installed and operated, can work everywhere as long as Ethernet is available.
FEATURED PRODUCTS:
1. ip intercom terminal with video / ip safety intercom / vandal-proof intercom stations
Features
Stainless steel, durable, surface-mounted or flush-mounted
Split-type design avoids the exposure of network cables, ensuring the network security of the bank
The main controller of the terminal can connect 8 panels at most; the panels are linked by network cable, 300m at most.
Double-button panel with models of emergency call and service consultation.
Built-in Speaker, microphone and camera.
Short-circuit output and input interfaces, can receive and control some peripheral devices.
Works everywhere as long as Ethernet is available.
Specifications
| Model | TBV-8201A |
| Power Source | DC12V |
| Power Consumption | ≤5W |
| Network Protocol | TCP/RTP/UDP |
| Network Chip Rate | 10/100Mbps |
| Audio Sampling | 22.05kHz-44.1kHz, 16bit |
| Transmit Rate | 16kbps-192kbps |
| Camera | 1/3color camera |
| Interface | 1 Audio-out, 4 short-in, 2 short-out, 1 RJ 45 |
| Dimensions | 117*204*41mm |
2. emergency call station / help point / SOS column with surveillance camera
One touch call to management center or police station asking for help in emergency.
Customize service available.
Features
1 Full metal shell and explosion-resistible, easy to be recognised
2 Single button or double button, with one-touch call function (pre-set the target in the server), realize full-duplex talkback.
3 With built-in camera, present live scene to the control center.
4 Built-in speaker and microphone, for hands-free call and broadcast receiving.
5 Digital audio recording, save auido file in the paging microphone then upload to the server when system is free.
6 With audio output port, can connect to active speaker.
7 Short-circuit output to connect electronic lock or alarm light; short-circuit input to connect the alarm button.
8 Optional 20W amplifier module for connecting external column loudspeaker or horn speaker
9 Remote software update, configuration and monitoring
10 Works everywhere as long as Ethernet available.
Software Features
Compatible with Windows 2000, Windows XP operation system.
Set up the parameters of the intercom substations.
Show all the call records, store the recorded files of each conversation.
Can import the project map to the software, show the terminals on approprite location by icons.
Can play backgroup music to any intercom terminals under “Broadcast” mode.
Remote setup and upgrate of the terminals
3. ip call box for help / intercom for crisis situation / emergency phone and intercoms
For the alarm assistance in the safe city and safe campus. suitable for indoor and outdoor environment.
Features
1 Die-casting aluminum shell, vandal-proof and waterproof, can be fixed on column. TBV-8208 with raincover(embedded size 117x338x55mm).
2 Single button, with one-touch call function(preset the target in the sever), realize full-duplex talkback.
3 One touch for help, simple and quick operation.
4 With built-in camera, present live scene to the control center.
5 Built-in speaker and microphone, for hands-free call and broadcast receiving.
6 Digital audio recording, save auido file in the paging microphone then upload to the server when system is free.
7 TBV-8206/TBV-8206D with LED display, show 8 characters each line.
8 With audio output port, can connect to active speaker.
9 Short-circuit output to connect electronic lock or alarm light; short-circuit input to connect the alarm button.
10 Remote software update, configuration and monitoring.

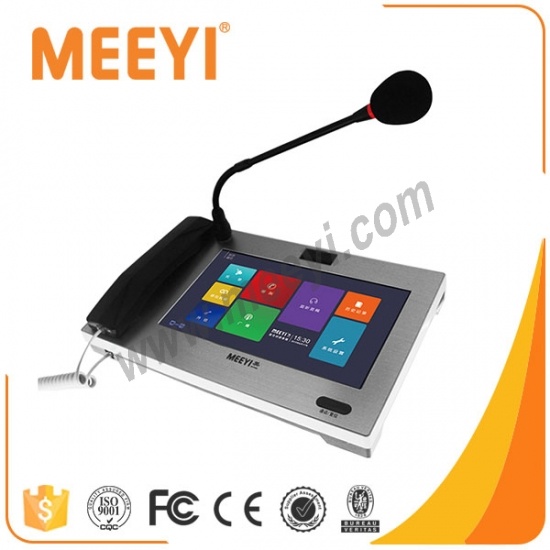

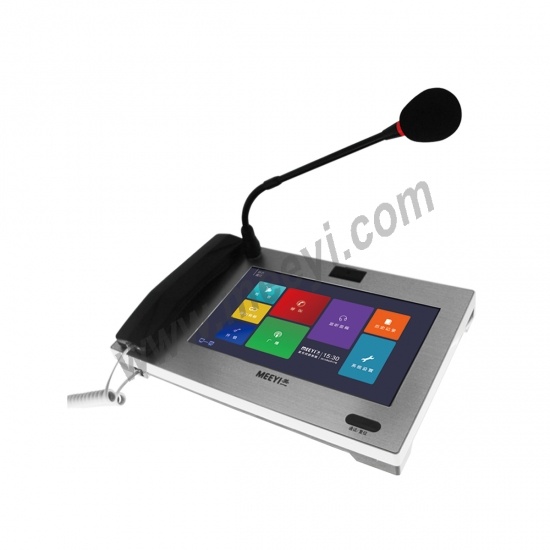

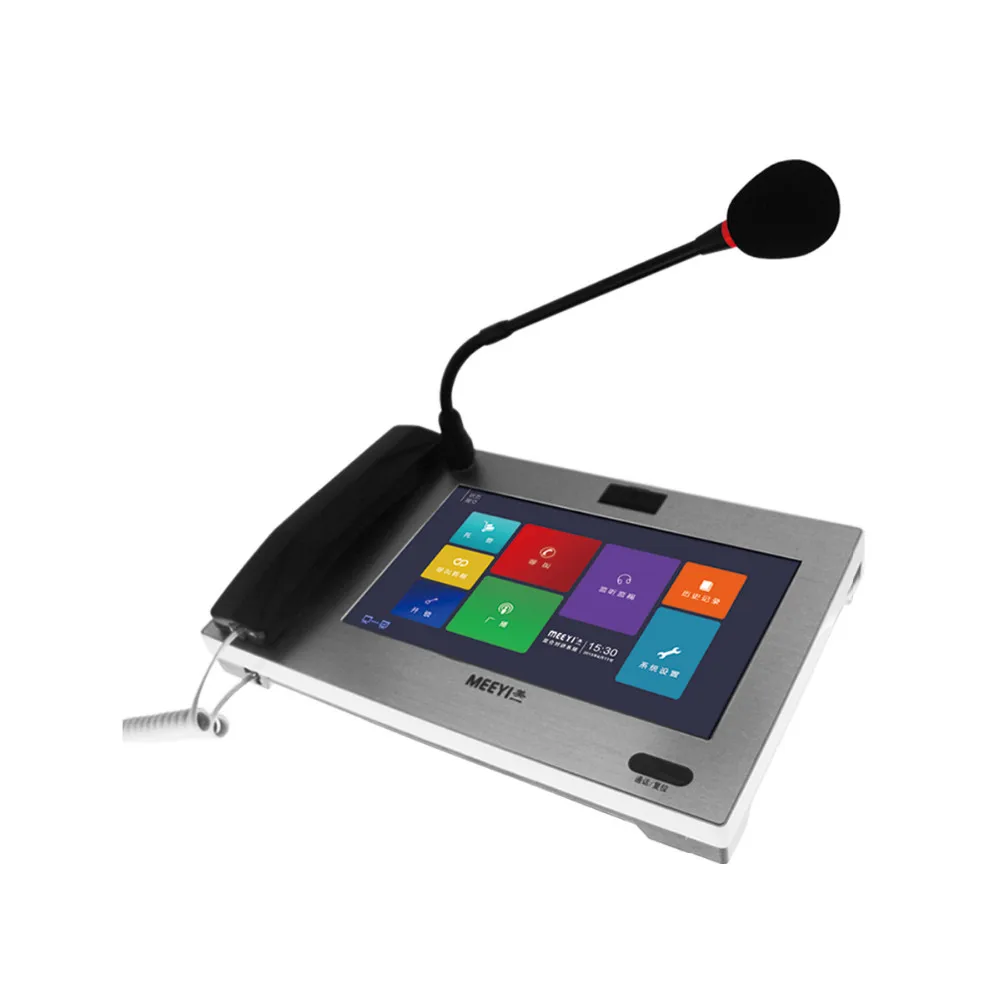

4. ip paging microphone
Features
6 shortcuts, 10 inch LCD color touch screen
Use industry-grade high speed chip
Call transfer; busy transfer; missed call reminder
Can broadcast to both equative paging mivrophone and all inferior terminals.
Built-in speaker allows bidirectional intercom, presenting the images from terminals.
Monitoring and surveilling all the terminals.
With 2 short-circuit output interfaces, can control some peripheral devices, e.g. alarm light.
Works everywhere as long as Ethernet available,can cross network segment and routing.

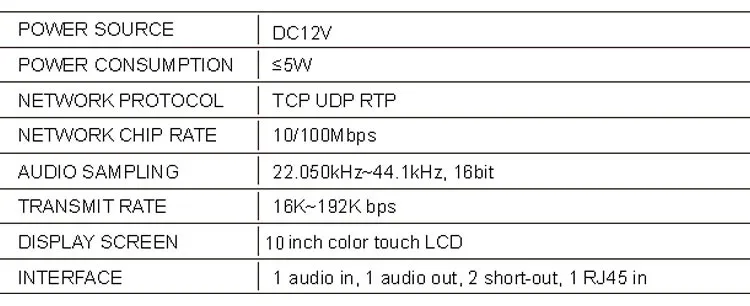

Specifications
Diagram:
System Construction:
1. Management software: As
the server of the system, in charge of the setting of all the stations.
All the stations in the system are running based on the server
management software. The software shall keep opening to ensure the
normal running of all the IP stations. If the software shut down, all
terminals will disconnect from the network.
2. Paging microphone: Deploy
in the control center, supervise and manage all the intercom terminals.
Functions of intercom, broadcast propaganda, monitor and surveil are
available. Can intercom with the server management software.
3. Intercom terminal: Install
one by where need help or assistance. One push for hand-free
conversation with the main control center. The calling target can be the
paging microphone or the server software. (Predesigned by the server
software). The software and paging microphone can call, monitor and
surveil the intercom terminal.
Typical application at ATM & Parking lot
