Emergency TCP/IP SIP Intercom System

Enabled by TCP/IP technology, Huanyutong IP Network Intercom /broadcasting System is a integrated system of two-way audio amplification and one-way (or two-way) video transmission. This system steams the audio and video signals over LAN or WAN by the form of IP packet., completely solving the problems existing in traditional intercom or broadcasting system: poor sound quality, complicate maintaining management, limitation of transmission distance, poor interaction, being heard without image, etc. This system is easy to be installed and operated, can work everywhere as long as Ethernet is available.

Purpose

Suitable for indoor and outdoor environment, durable and waterproof

Features

1 Stainless steel panel, durable, surface-mounted or flush-mounted.

2 Double-button panel with models of emergency call and service consultation; one-touch call function(pre-set the target in the server), realize full-duplex talkback.

3 Built-in Speaker and microphone, be available for hands-free talkback and receiving broadcasting.

4 Digital audio recording, save auido file in the paging microphone then upload to the server when system is free.

5With audio output port, can connect to active speaker.

6 Short-circuit output to connect electronic lock or alarm light; short-circuit

input to connect the alarm button.

7 Works everywhere as long as Ethernet is available.

8 Remote software update, configuration and monitoring

Specifications

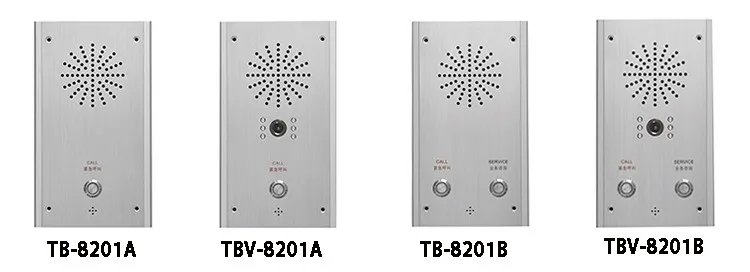

Related Products

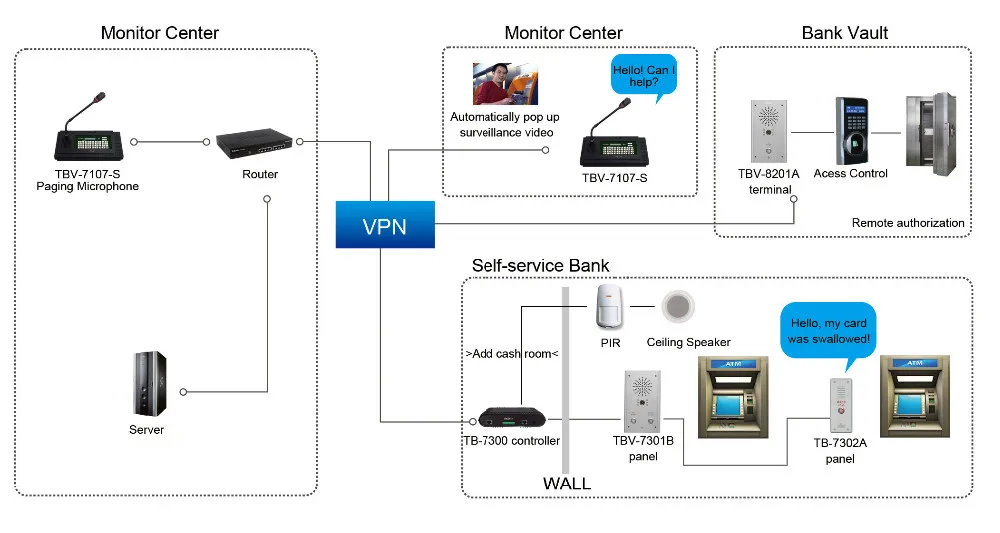

System diagram: Bank/ATM

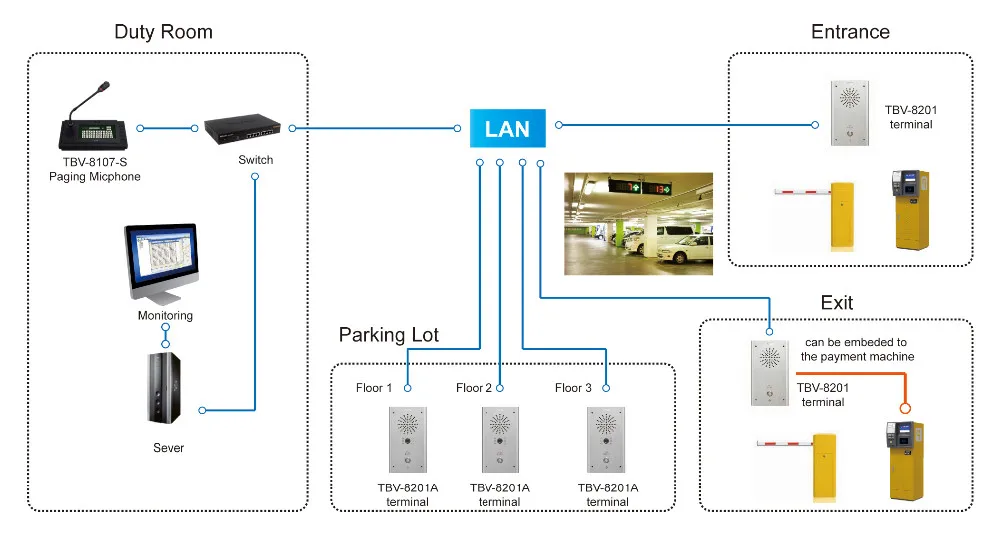

System diagram: Parking

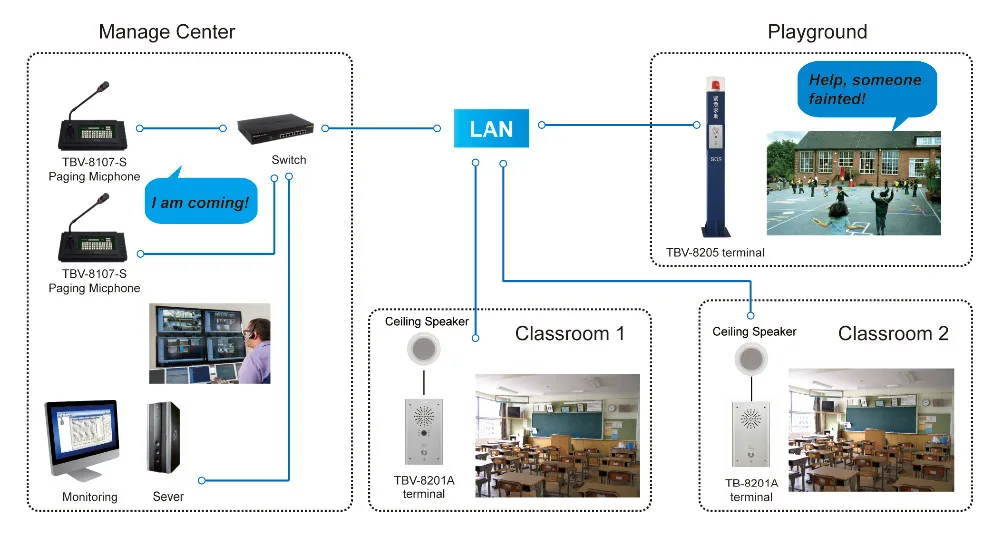

System diagram: School

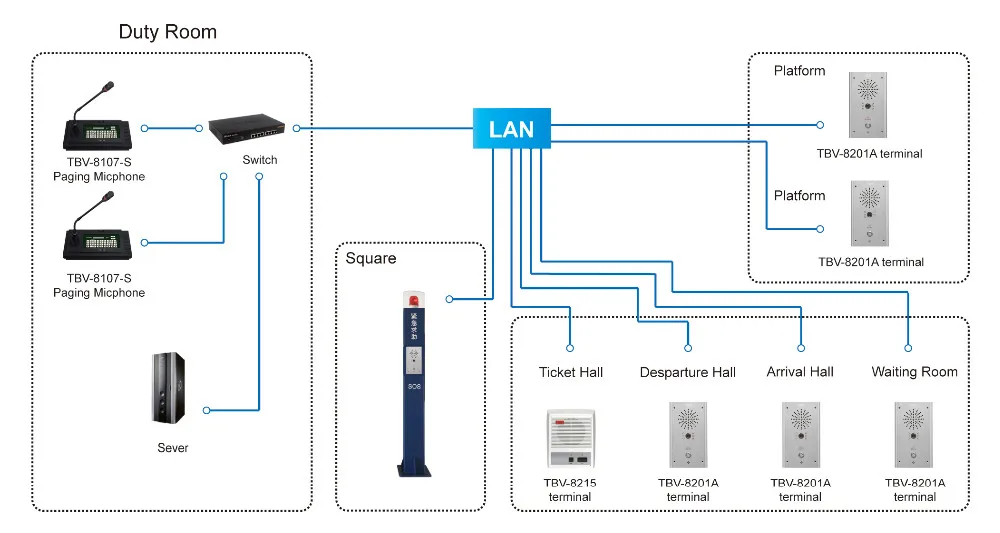

System diagram: Subway/Train station/Airport

System Construction

1. Management software: As the server of the system, in charge of the setting of all the stations. All the stations in the system are running based on the server management software. The software shall keep opening to ensure the normal running of all the IP stations. If the software shut down, all terminals will disconnect from the network.

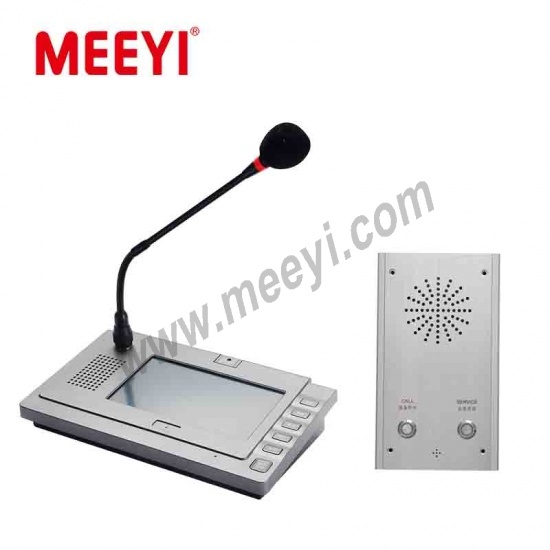

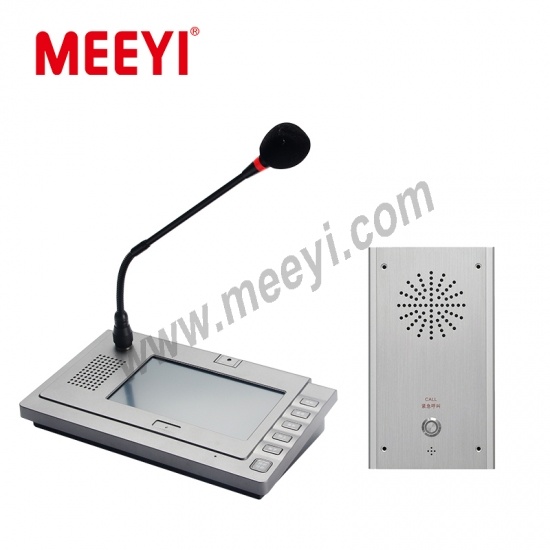

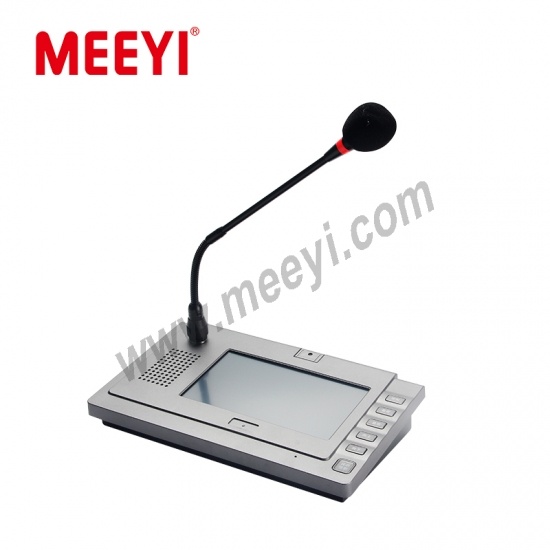

2. Paging microphone: Deploy in the control center, supervise and manage all the intercom terminals. Functions of intercom, broadcast propaganda, monitor and surveil are available. Can intercom with the server management software.
3. Intercom terminal: Install one by where need help or assistance. One push for hand-free conversation with the main control center. The calling target can be the paging microphone or the server software. (Predesigned by the server software). The software and paging microphone can call, monitor and surveil the intercom terminal.
