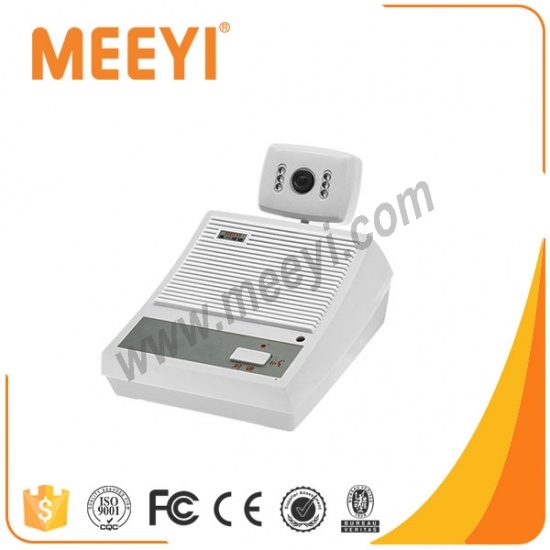

Meeyi Indoor Use One-Touch Call Video Intercom IP System

TBV-8215A one-touch Indoor IP intercom is suitable for indoor use, desktop design.

Features

1 Plastic shell, desk-top design.

2 Single button or double button, with one-touch call function (pre-set the target in the server), realize full-duplex talkback.

3 With camera, present live scene to the control center.

4 Built-in speaker and microphone, for hands-free call and broadcast receiving.

5 Digital audio recording, save auido file in the paging microphone then upload to the server when system is free.

6 With audio output port, can connect to active speaker.

7 Short-circuit output to connect electronic lock or alarm light; short-circuit input to connect the alarm button.

8 Remote software update, configuration and monitoring

9 Works everywhere as long as Ethernet available.

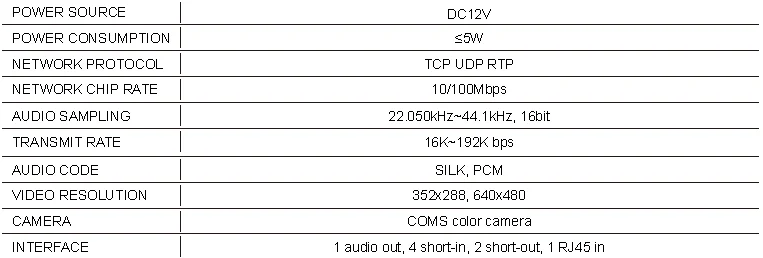

Specifications

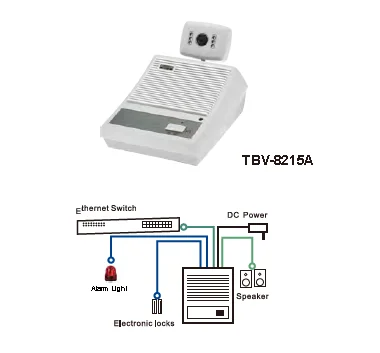

System diagram

System Construction

1. Management software: As the server of the system, in charge of the setting of all the stations. All the stations in the system are running based on the server management software. The software shall keep opening to ensure the normal running of all the IP stations. If the software shut down, all terminals will disconnect from the network.
2. Paging microphone: Deploy in the control center, supervise and manage all the intercom terminals. Functions of intercom, broadcast propaganda, monitor and surveil are available. Can intercom with the server management software.
3. Intercom terminal: Install one by where need help or assistance. One push for hand-free conversation with the main control center. The calling target can be the paging microphone or the server software. (Predesigned by the server software). The software and paging microphone can call, monitor and surveil the intercom terminal.
